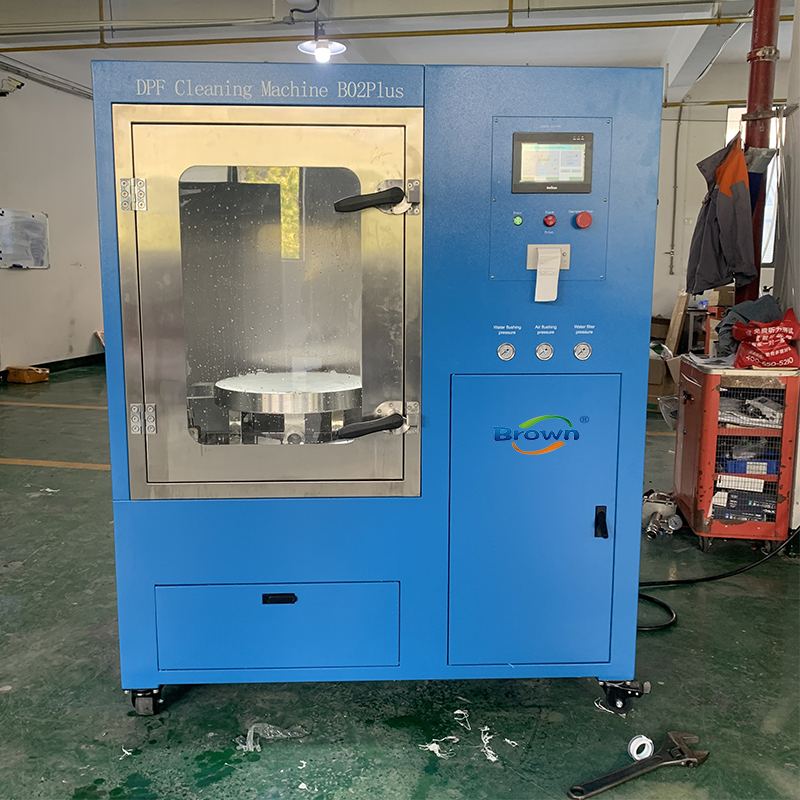

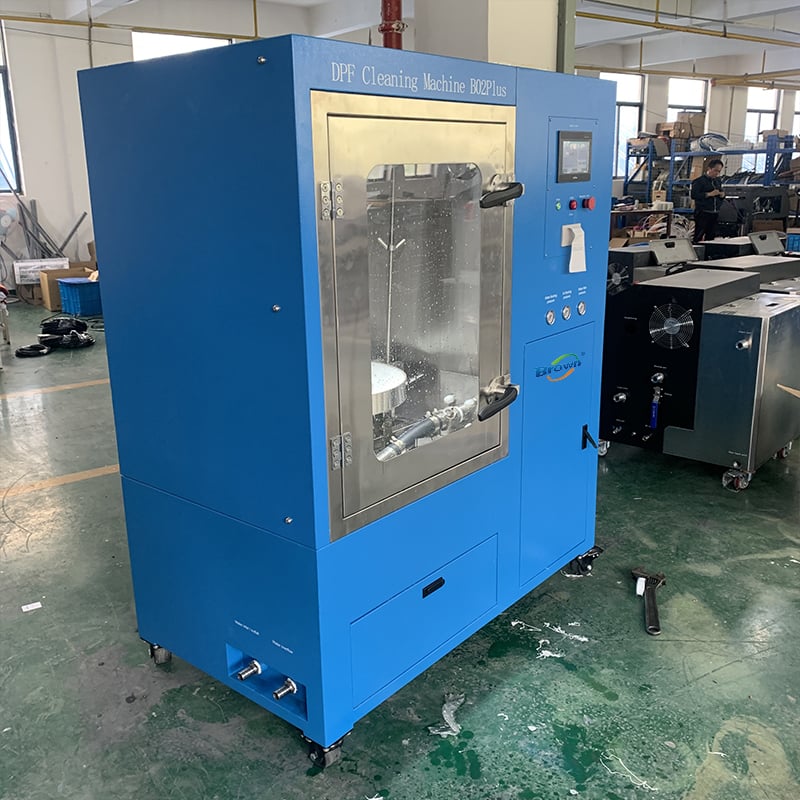

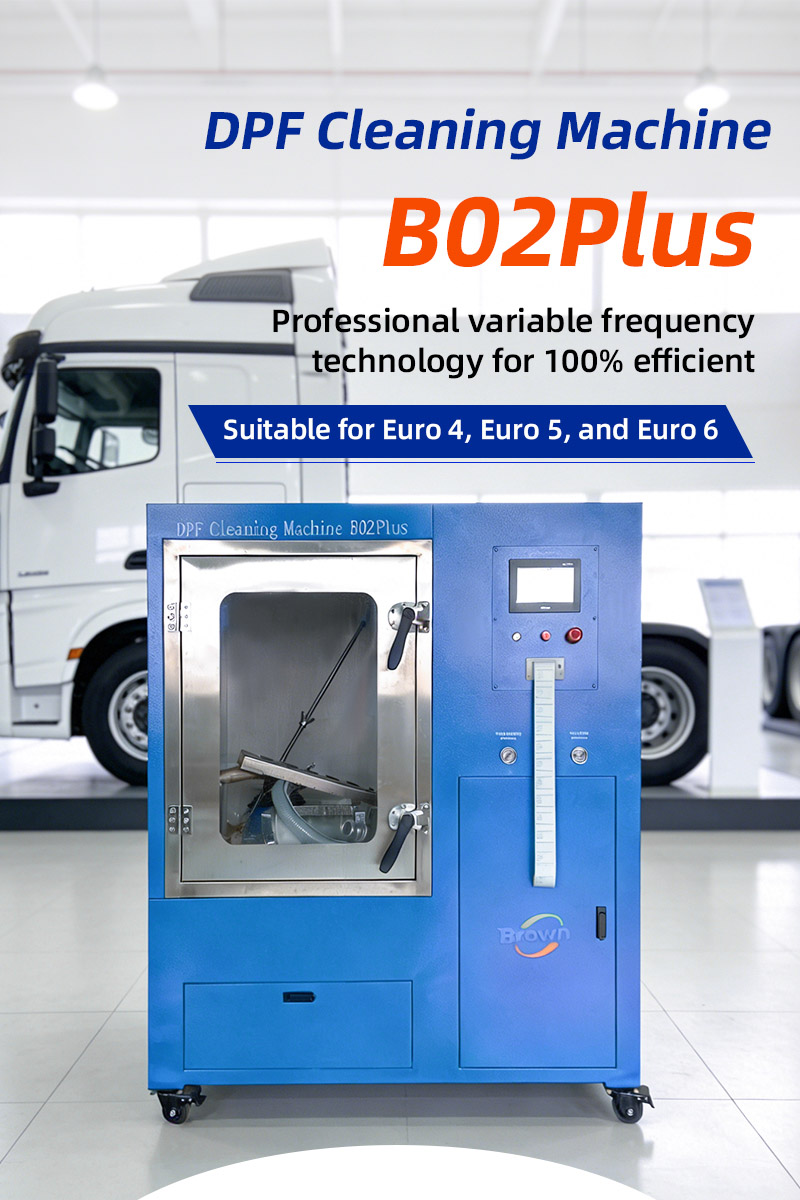

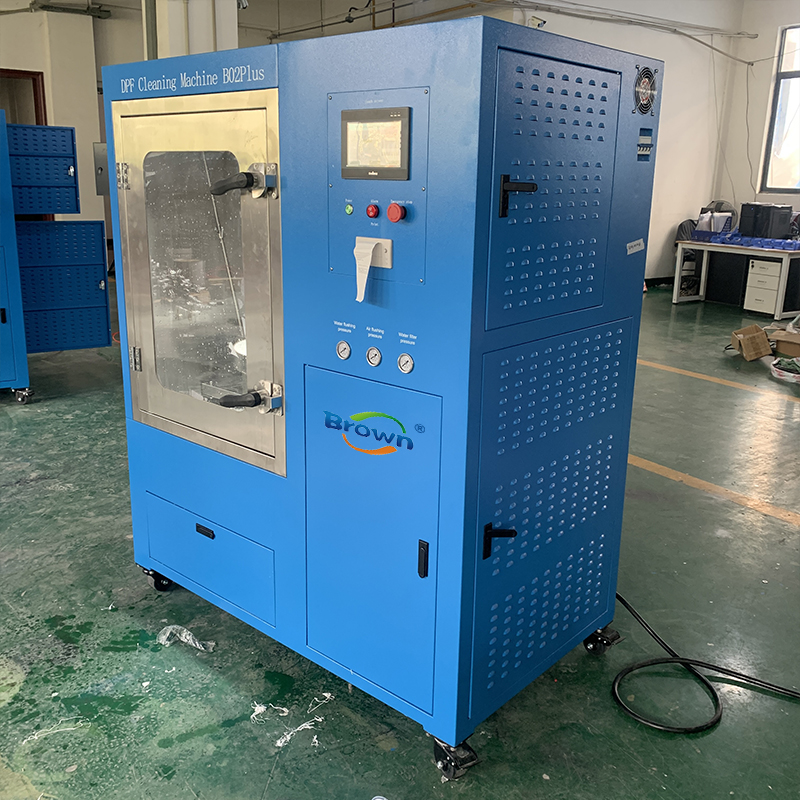

dpf cleaning machine b02plus

Product Parameters

Advantages

You can do entire cleaning cycle (washing,drying,testing) with one machine only,greatly saves your money and time.

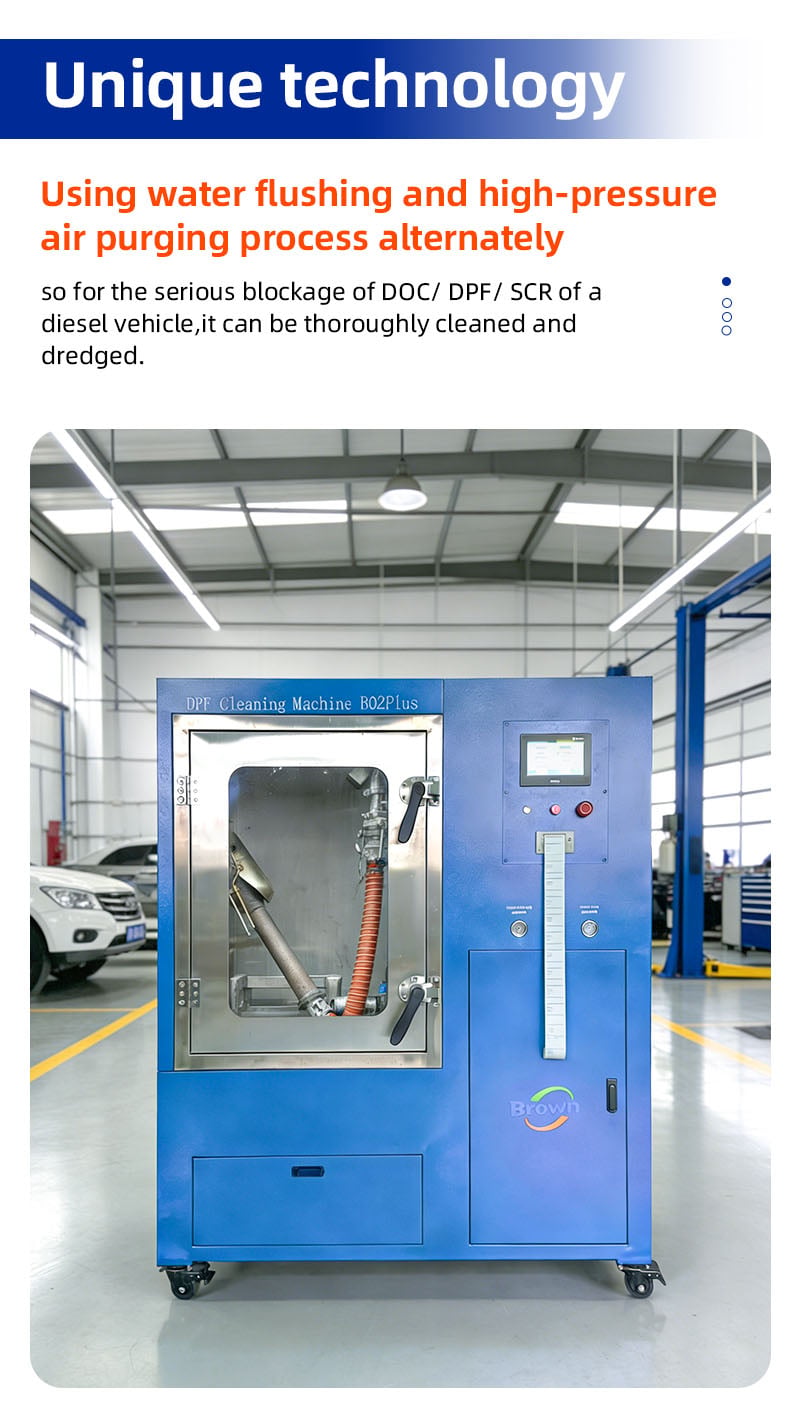

1.Unique technology: Using water flushing and high-pressure air purging process alternately, so for the serious blockage of DOC/DPF/ SCR of a diesel vehicle,it can be thoroughly cleaned and dredged.The high-pressure air in the high-pressure gas storage tank is released instantaneously, mixed with high flow water to generate potential energy, and the blockage inside the honeycomb carrier is pushed out instantly, use with cleaning chemical, total removal of all residuals, PM10 residuals and cerium residuals,carbon deposits.
2. Wide range of applications for different diesel cars: cleaning of different types of SCR/DPF/catalyst of ultra size range.

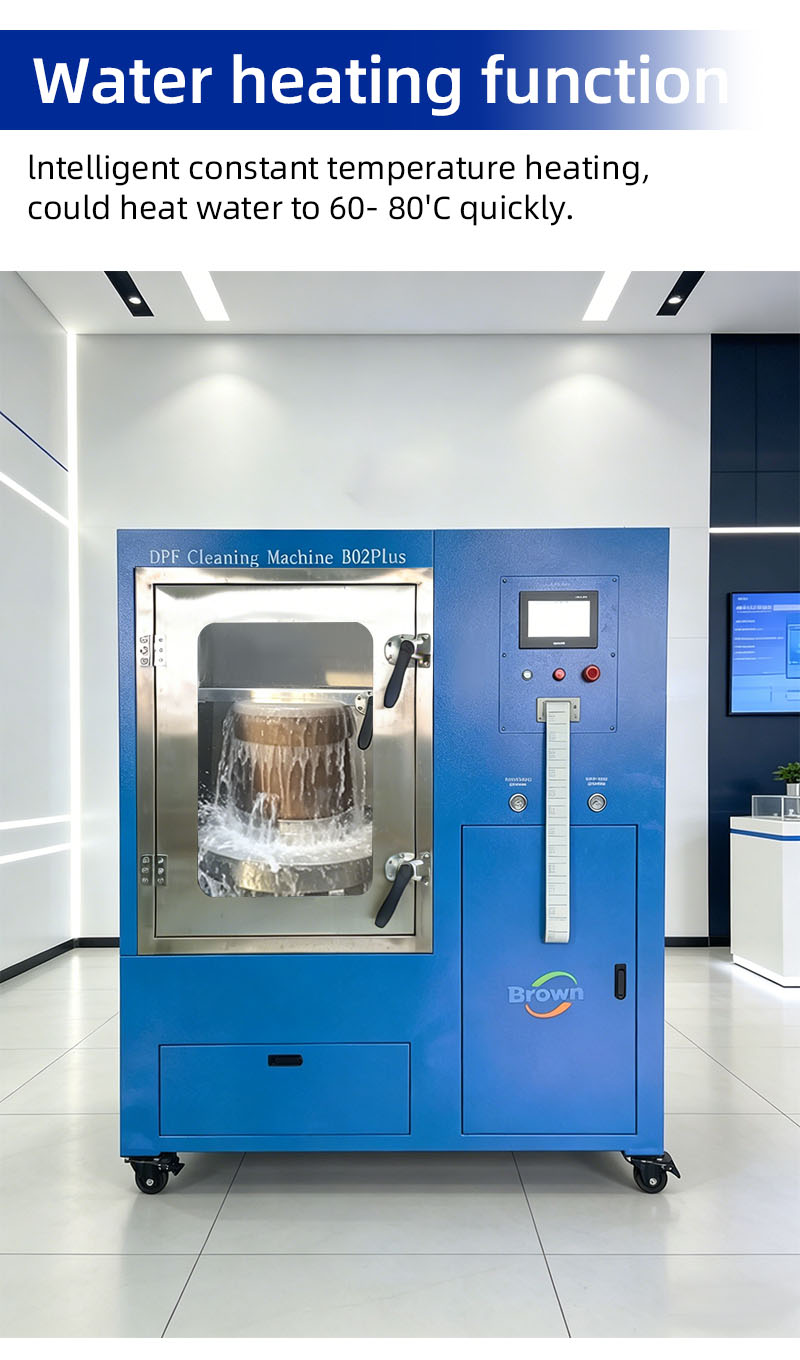

3.Water heating function:Intelligent constant temperature heating, could heat water to 60-80℃quickly.

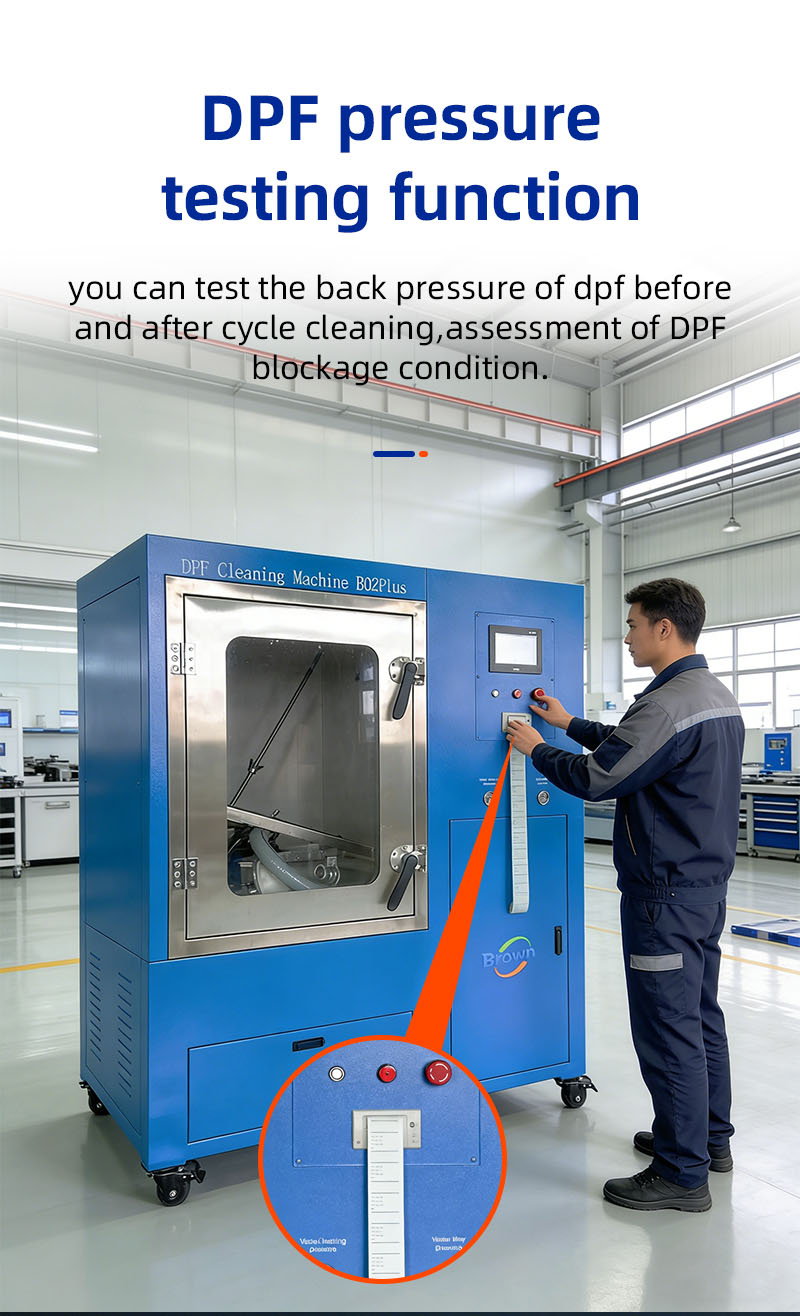

4. DPF pressure testing function:you can test the back pressure of dpf before and after cycle cleaning, assessment of DPFblockage condition.
5.Air drying function: it allows to blow out the water moisture in the DPF for quick drying.

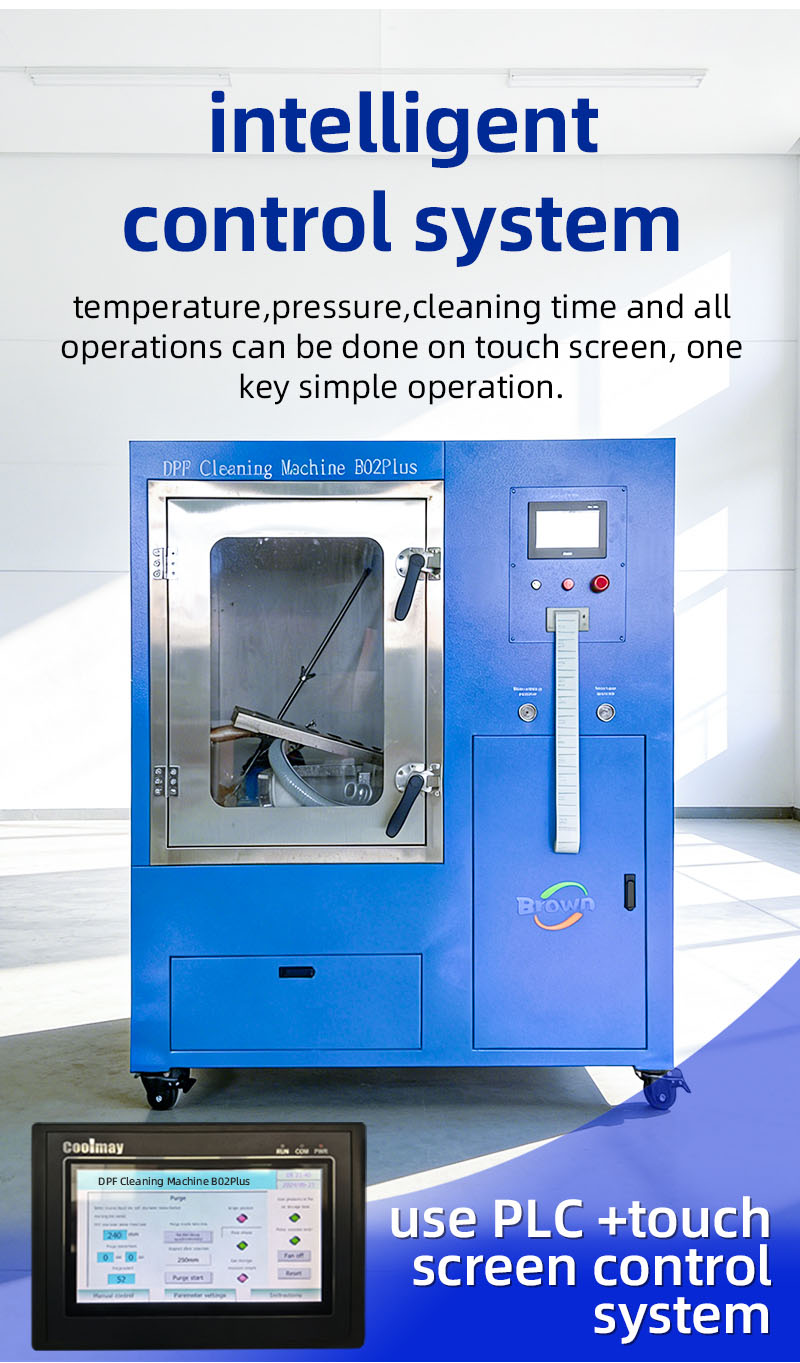

6.Intelligent control system: use PLC +touch screen control system,temperature,pressure,cleaning time and all operations can be done on touch screen, one key simple operation.
7.Water filtration:built-in water filtering system with fine filter to assure the cycle using of water.
8.Easy and Fast:only 30-60 minutes to complete whole process for regenerating a dpf, cost and time save, cleaning time is adjustable on touch screen.

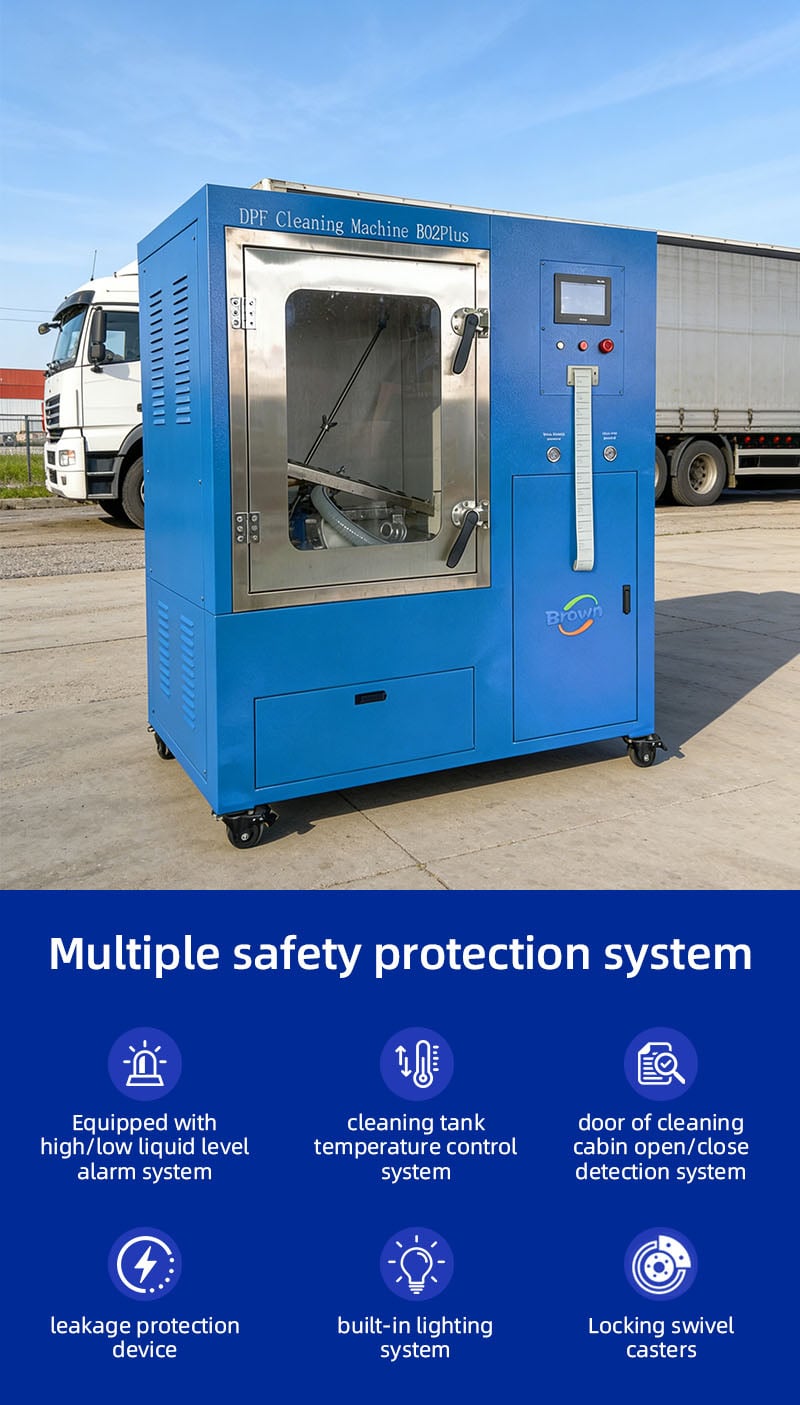

9.Multiple safety protection system: with humanized design to set up high/low liquid level alarm system,cleaning tank temperature control system, door of cleaning cabin open/close detection system, leakage protection device, built-in lighting system,locking Handle wheel to assure safety during use of machine.

Working principle

The machine designed to use water flushing and high pressure purging alternate workmatch use with dpf cleaning detergent,to assure efficient cleaning.Simply it is water flushing and high pressure purging alternate work.

Application

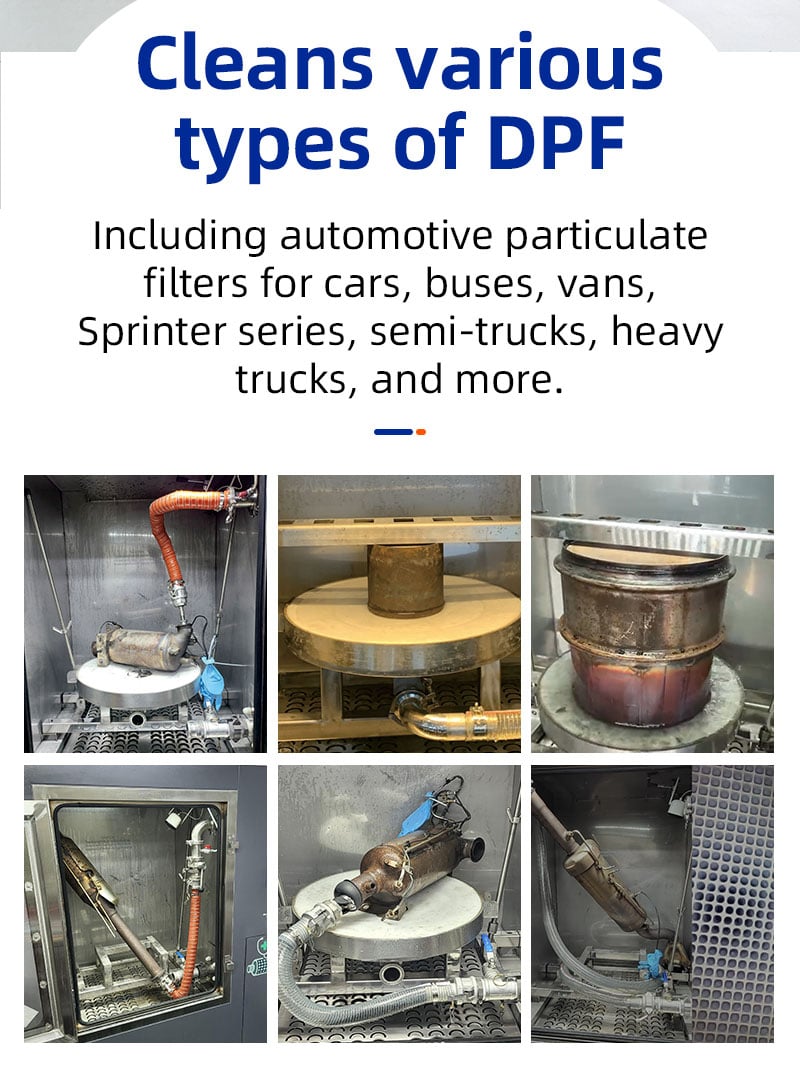

This machine allows to clean different kinds of DPF( particulate filter),SCR,DOC for cars of Euro 4, 5 and 6 systems, such as cars, buses,vans,sprinters,semi trucks,heavy trucks etc.

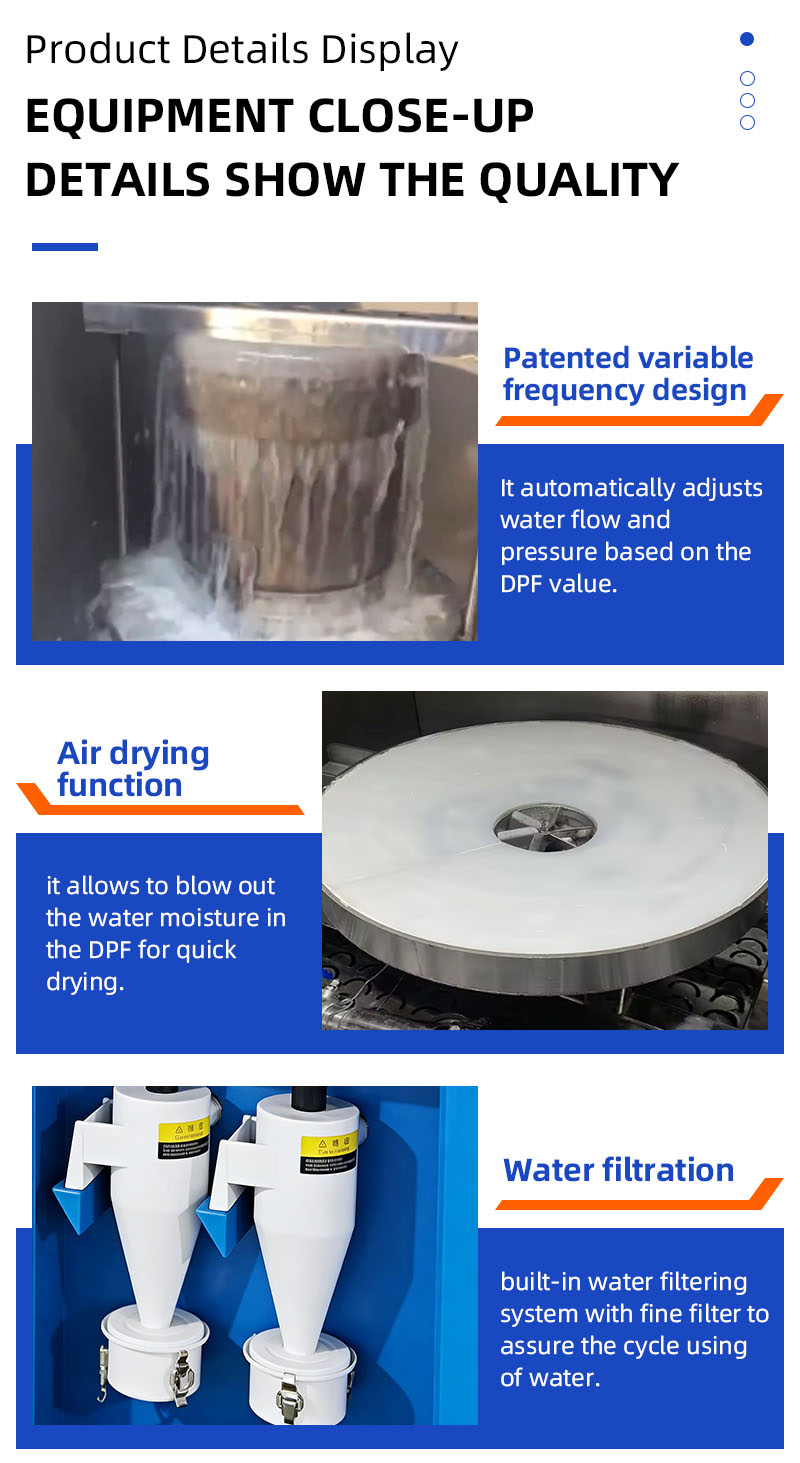

Equipment Details

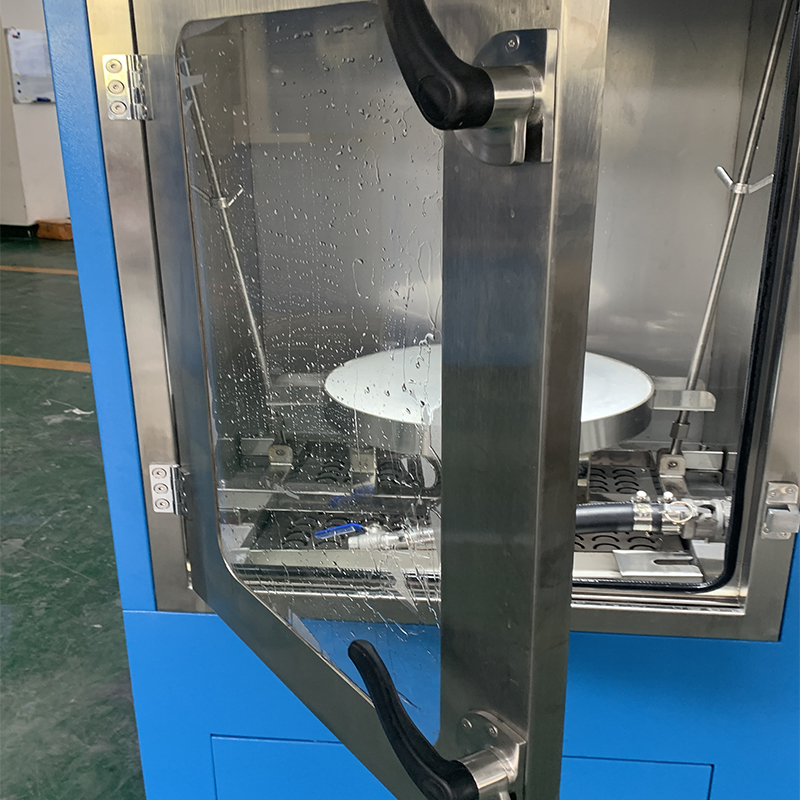

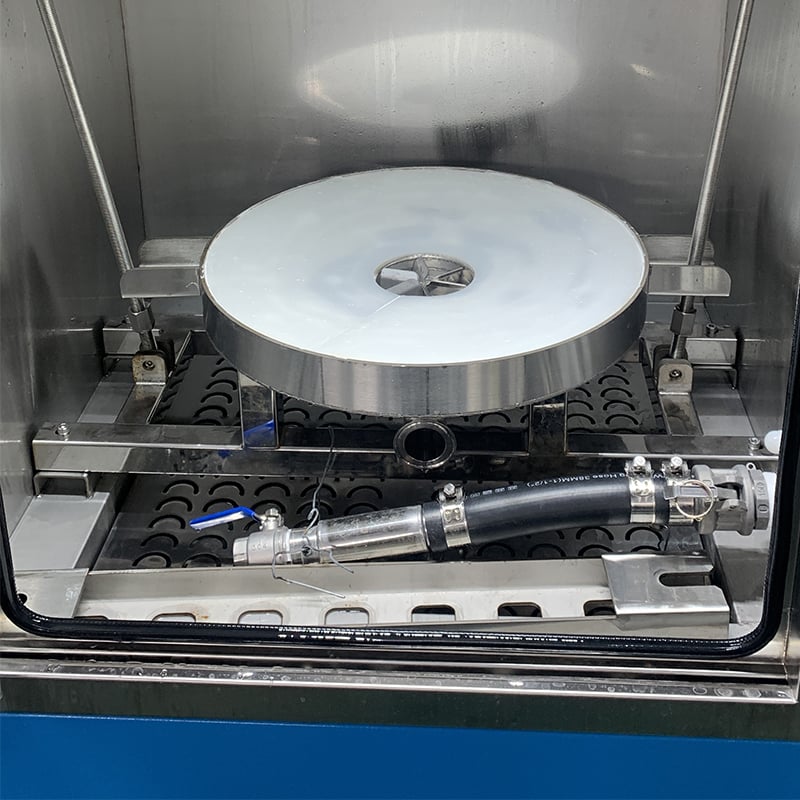

DPF sealed fixing fixture.By using intermittent high-pressure gas explosions to remove particles trapped in SCR&DPF, the cleaning effect can be achieved.

High pressure water pump.The cleaning impact is greater, maximizing the effect

Pressure gauge.Real time display of filter pressure. Real time display of gas explosion pressure during gas explosion flushing. Real time display of water flushing pressure.

High quality heating device.Fast and durable heating.

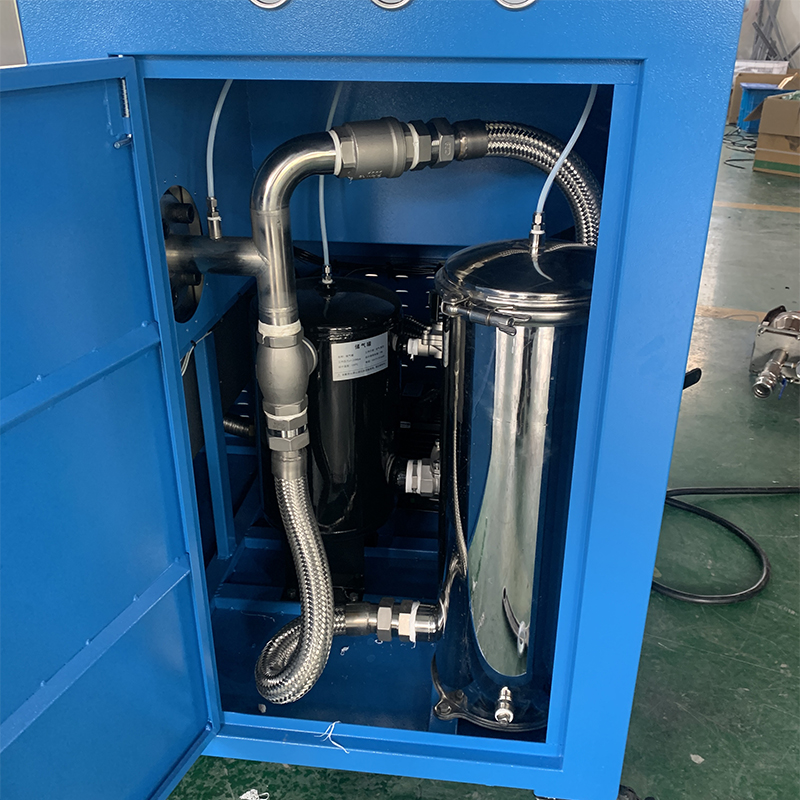

Equipped with high-precision. Easy to replace filter element. Wastewater filtration system.

Large capacity stainless steel cleaning sink.

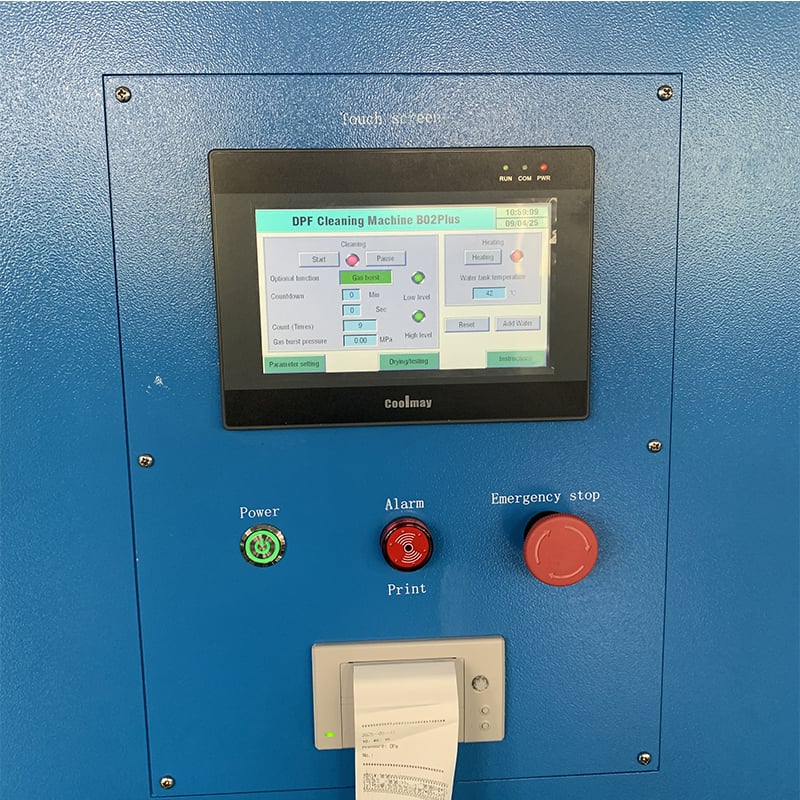

PLC control program, intelligent cleaning mode switching.Real time display of cleaning time, heating temperature, etc., and parameter settings

Environmental cleaning agent coordination.Water/gas explosion mode cycle cleaning.Fully free from dead corners

Independently developed fixtures and connectors.Suitable for various vehicle models.
More convenient to use.

Intelligent detection function.comparison of back pressure before and after cleaning.clear and visible cleaning effect.

Air drying repair function. Restore use as soon as possible after cleaning.More worry free.

Data printing function, comparison of pre - and post cleaning data.

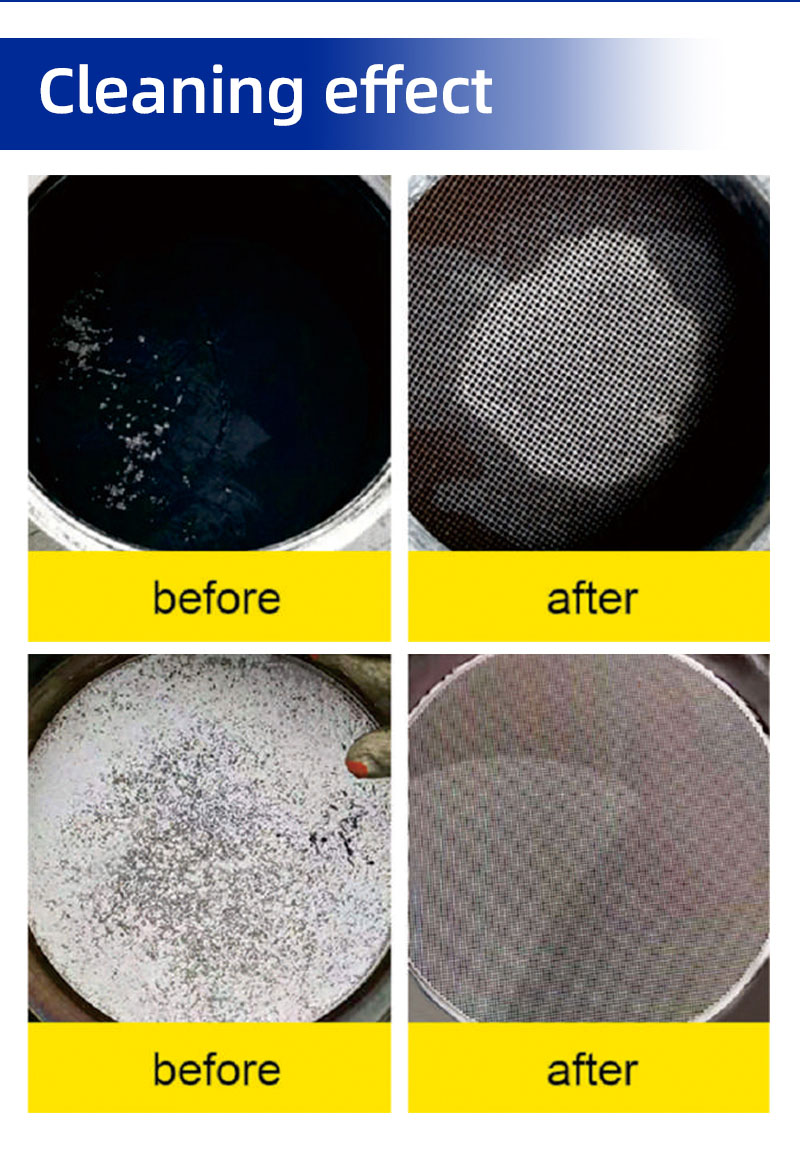

Comparison before and after cleaning
