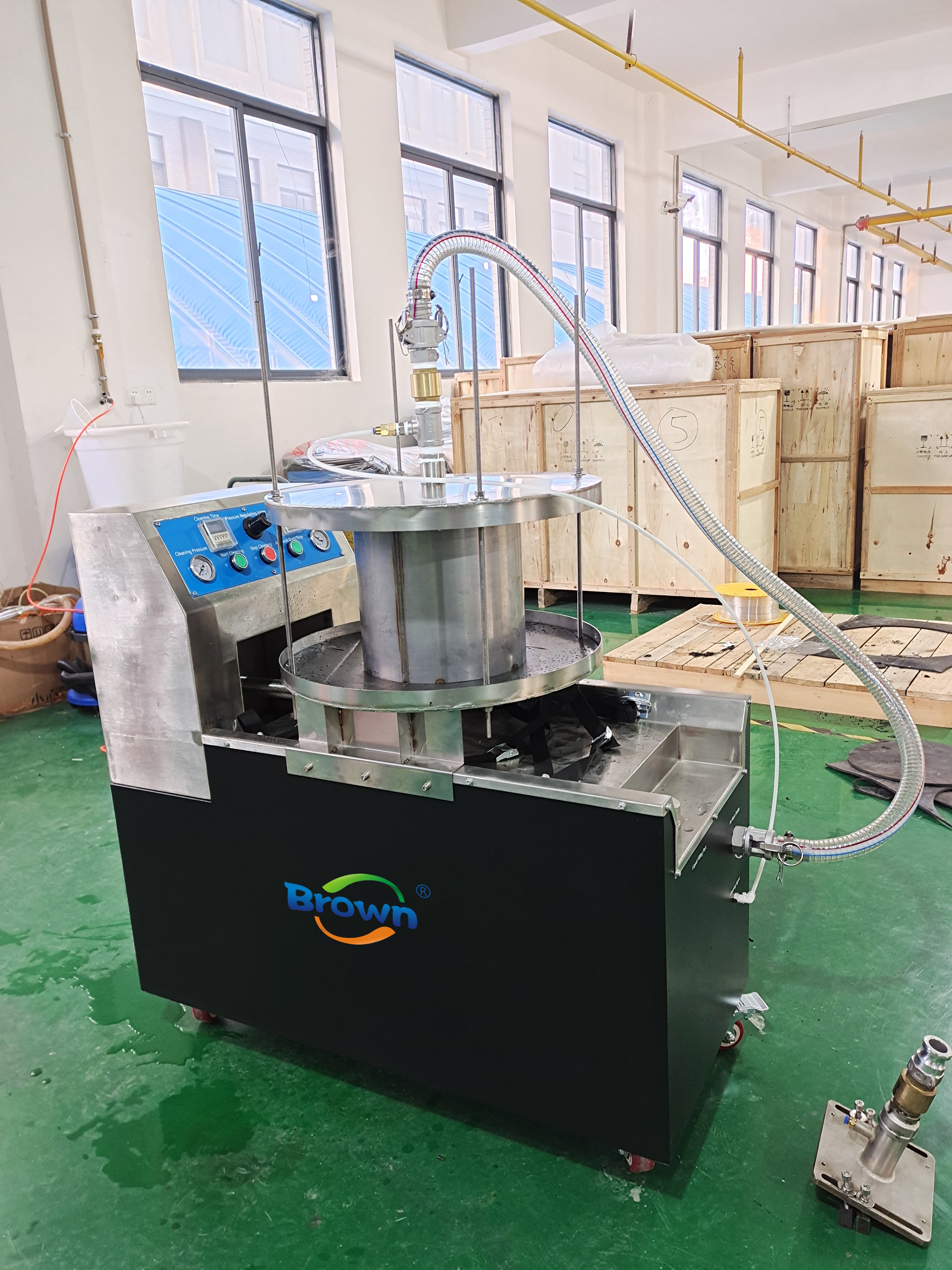

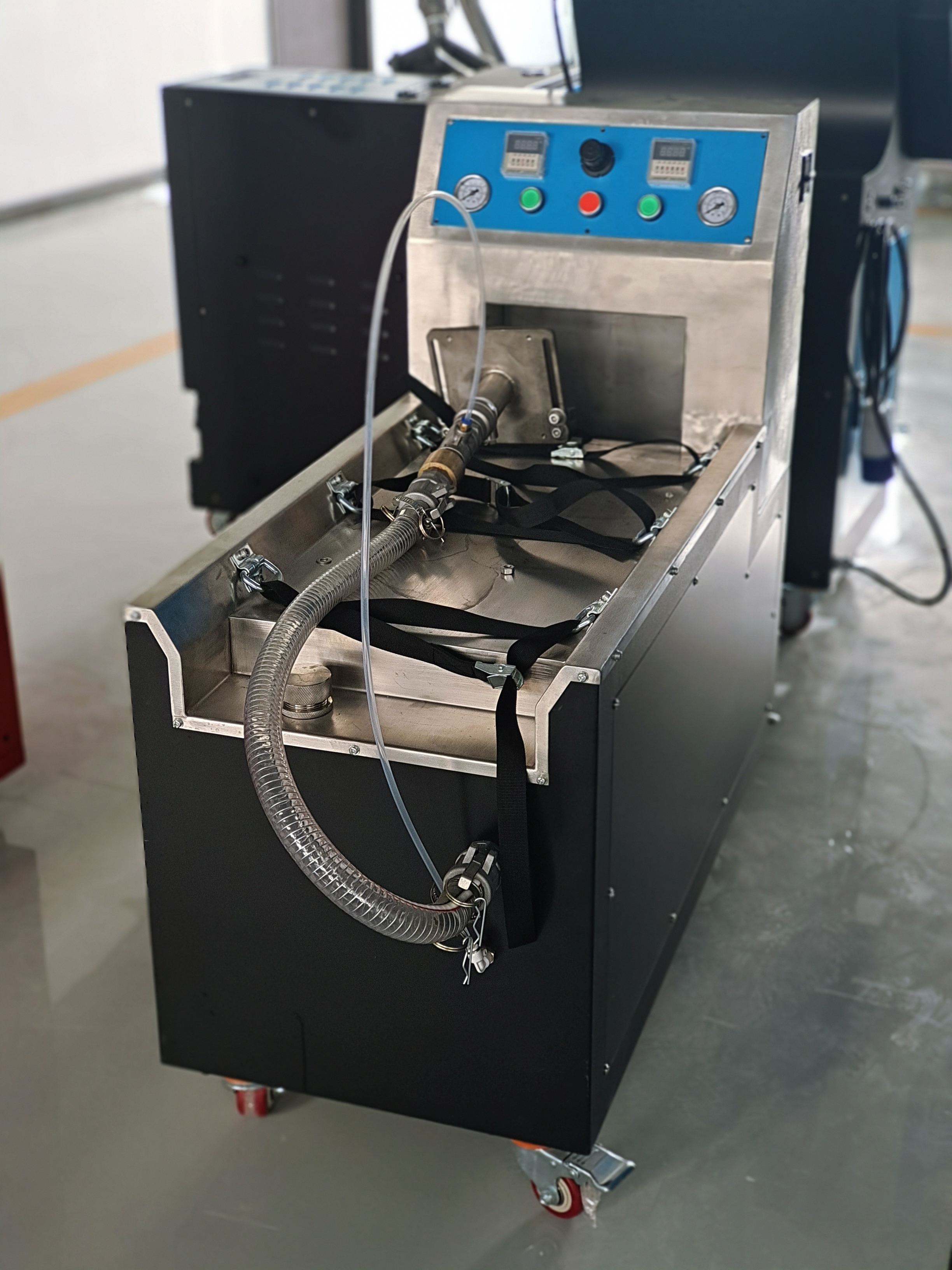

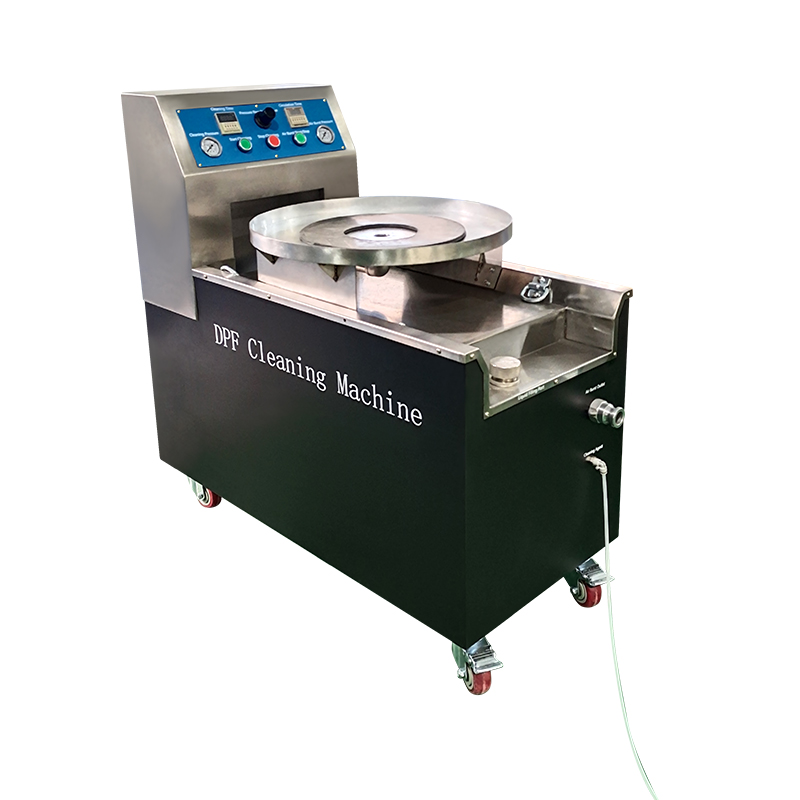

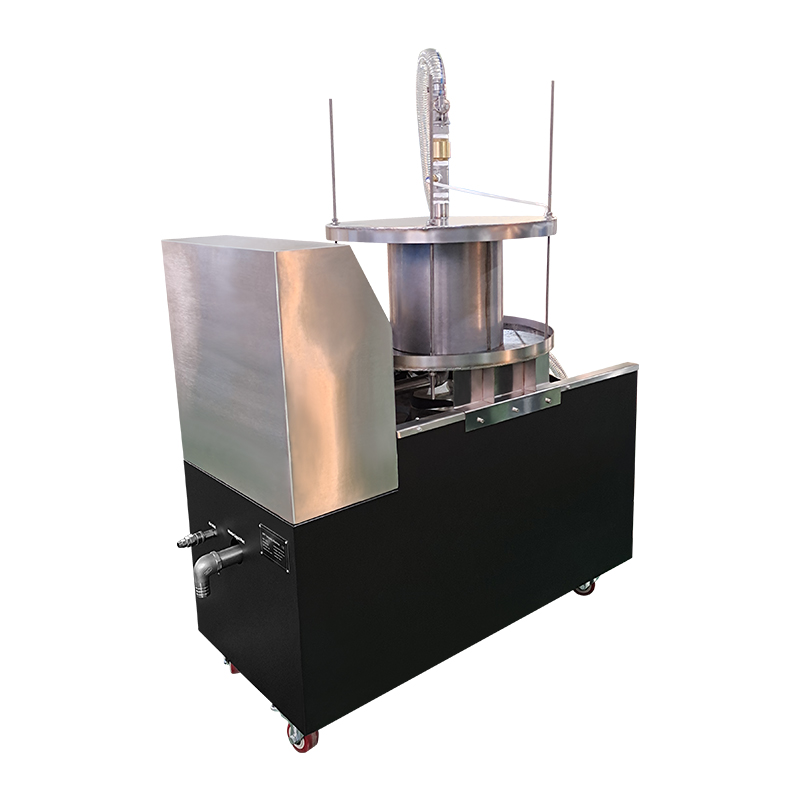

Air bursting type dpf cleaning machine

Product Parameters

How it works

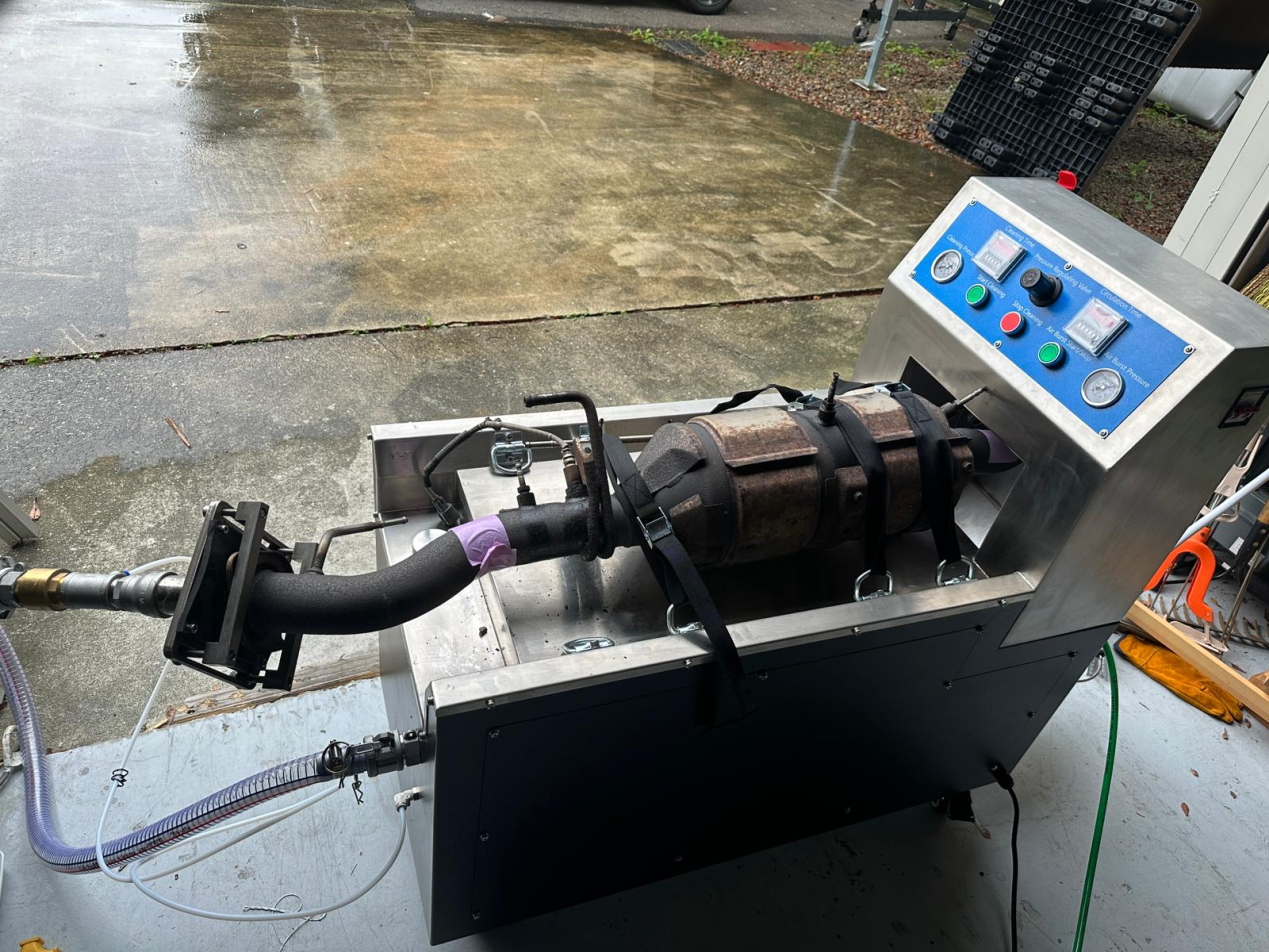

Cleaning agent and air pressure bursting alternate cleaning automatically. After softening the DPF blockage with the cleaning agent, blow out the blockage with compressed air, and alternate cleaning until the blockage is completely removed, so as to achieve the purpose of dredging the DPF.

Why choose us

1.Wide cleaning range suitable for kinds of DPF(flange type and round drum shape DPF)
2.Remarkable cleaning effect,cleaning agent and air pressure bursting alternate cleaning automatically.
3. Environmental protection and water saving. A small amount of water is required.
4. Simple operation, less consumables.
5. Automatic control, one key start.

Our Advantages

1.The compressed air produced by the compressor enters the air collecting tank through the air supply connector, and the pressure regulating valve limits the pressure of compressed air to an appropriate range before it enters air collecting tank, the pressure value shown on the pressure gauge is the current pressure of collecting tank.
2.One of the main circuits of the compressed air in the gas collecting tank is connected to the solenoid valve of air bursting, and the other branch is connected to the solenoid valve of  cleaning chemical.
3.The cleaning chemical solenoid valve on the branch is a normally closed solenoid valve, normally open after starting machine, after compressed air enters the chemical liquid tank, the liquid will be crushed into DPF, to efficiently soak and soften the clogged internal carbon deposits, complex compound and all dirties, meanwhile, the one-way valve on the main road will prevent the liquid from entering the main road.
4.The air burst solenoid valve on the main road on the main road is controlled by a time relay to open or close, air burst solenoid valve is opened every 30 seconds, so that machine will produce air bursting every 30 seconds, it will rinse out the dirties,even seriously blockage also can be dredged, to assure best cleaning effect.

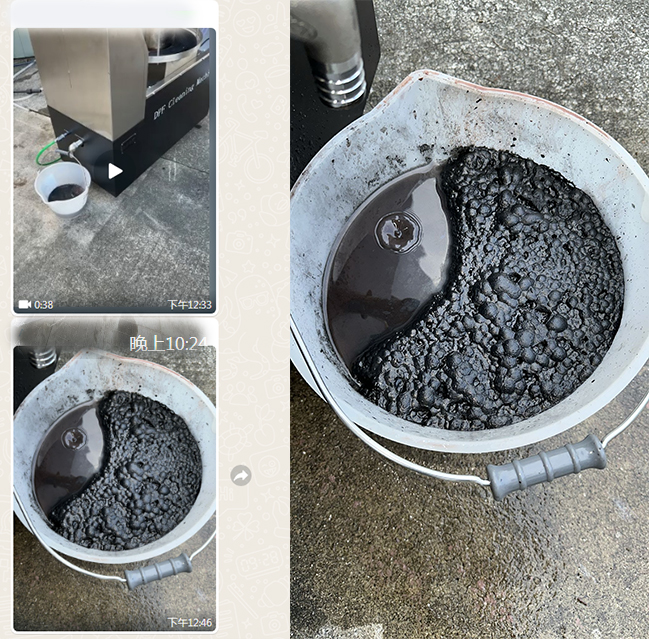

5.The dirties and waste liquid discharged can be collected to a waste liquid tank for centralized processing after cleaning, it's more evnironmental and eco-friendly.
6.Small sized machine, easy operate, greatly lower your cost.

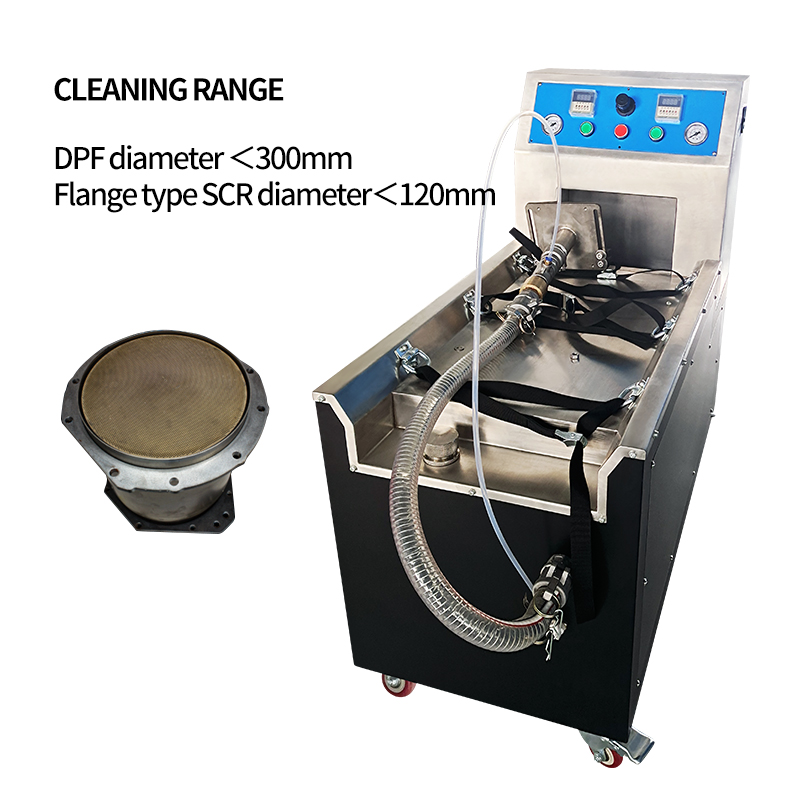

Cleaning range

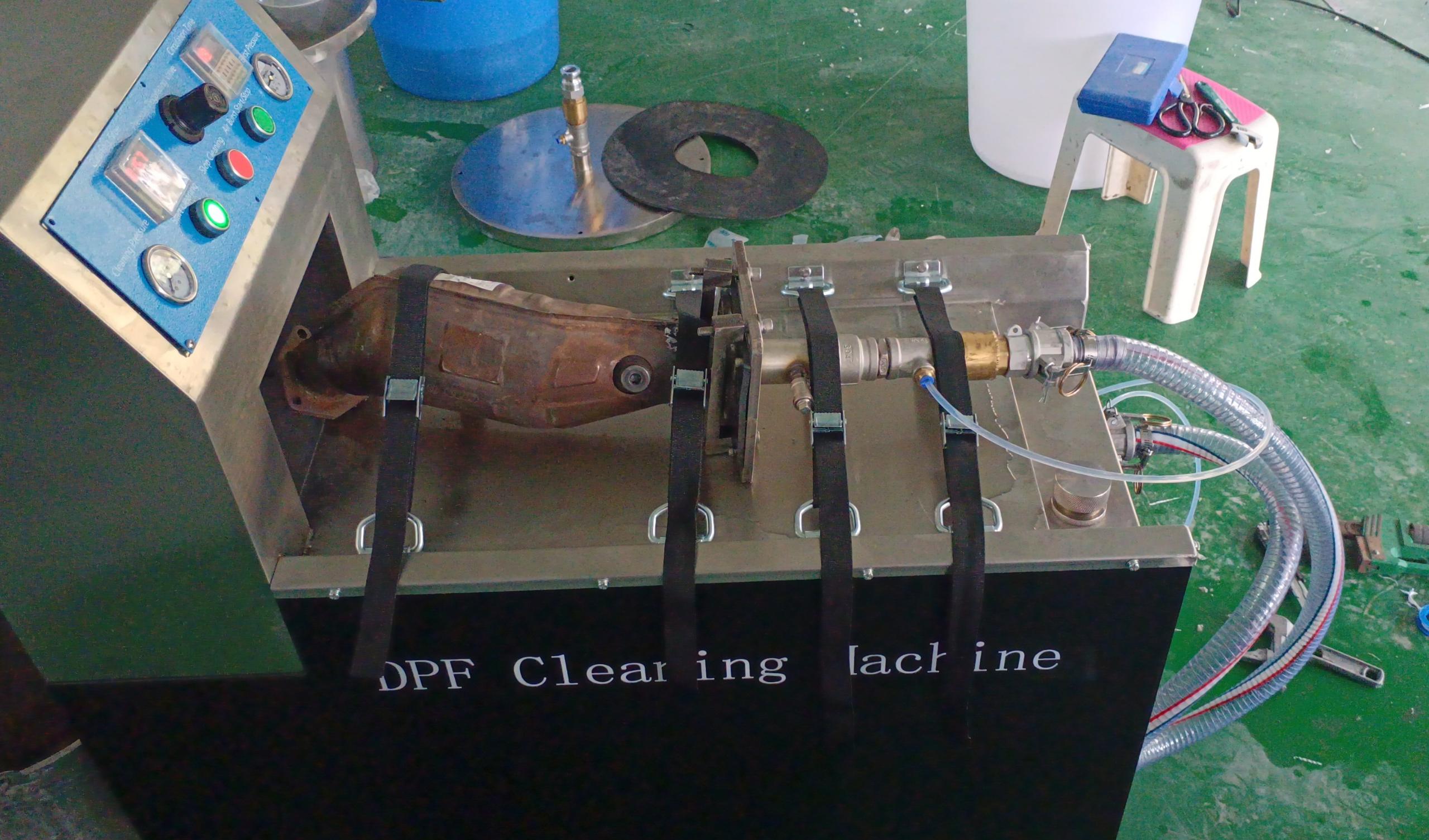

Cylindrical DPF diameter :100~400mm       Flanged DPF/Catalyst diameter:40~100mm
