Air Bursting Type DPF Cleaning Machine

Parameters

We are a manufacturing high-tech enterprise integrating R&D, technical services and sales, professional in producing kinds of engine carbon cleaning machines, catalytic converter cleaning machine, SCR/DPF cleaning machine, EGR cleaning machine etc.
With CE /ISO certificated, 80+ National Patents.We promise: 1 year warranty free of charge, lifelong time technical support and after sales service!
We also offer all kinds of OEM/ ODM services.

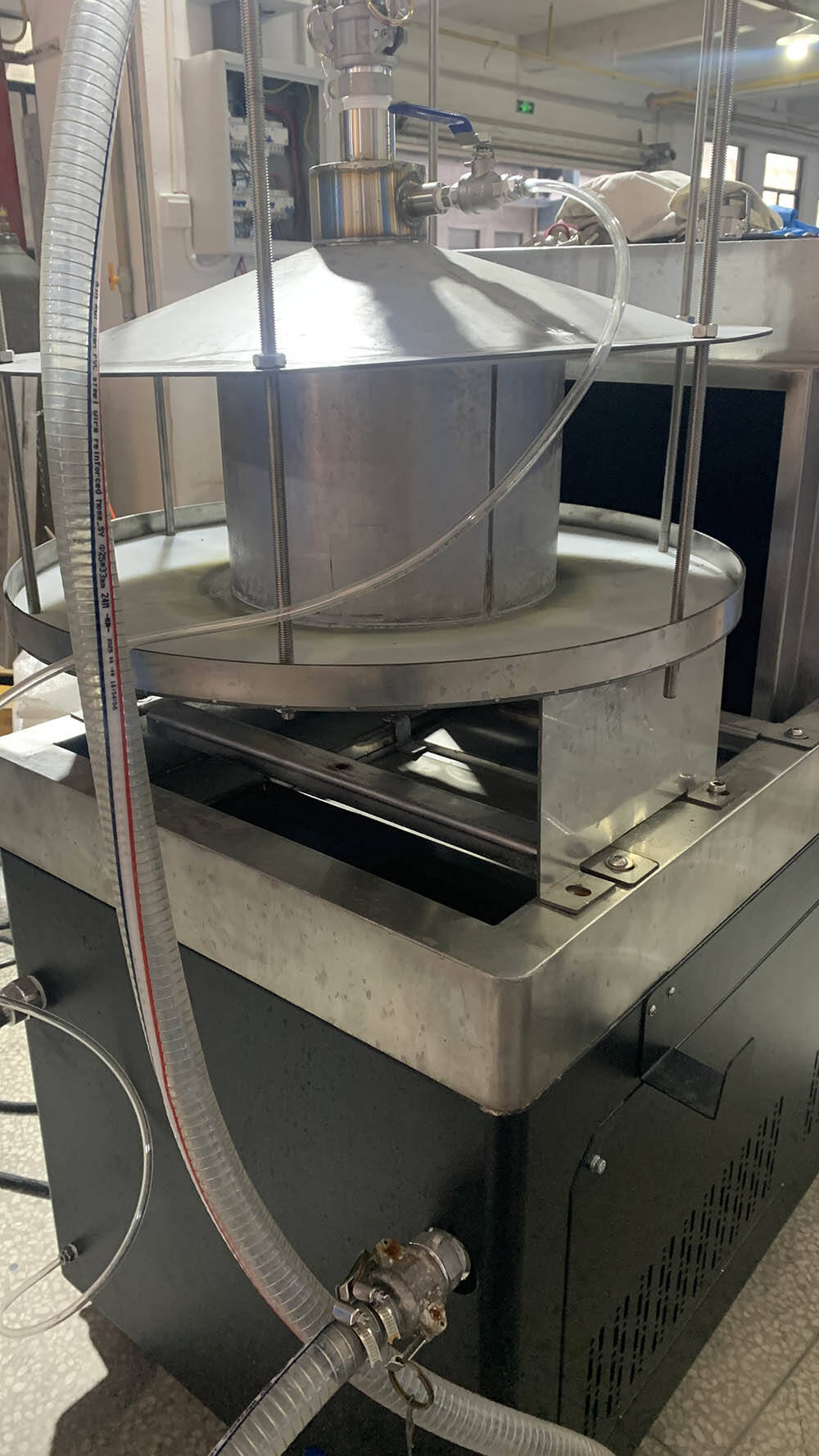

The cleaning system circulates a mixture of high temperature cleaning solution and compressed air to clean the SCR/DPF substrate.Both the high temperature cleaning solution and instantaneous compressed air impact can rapidly soften and impact-strip SCR deposits, delivering significant cleaning effectiveness.

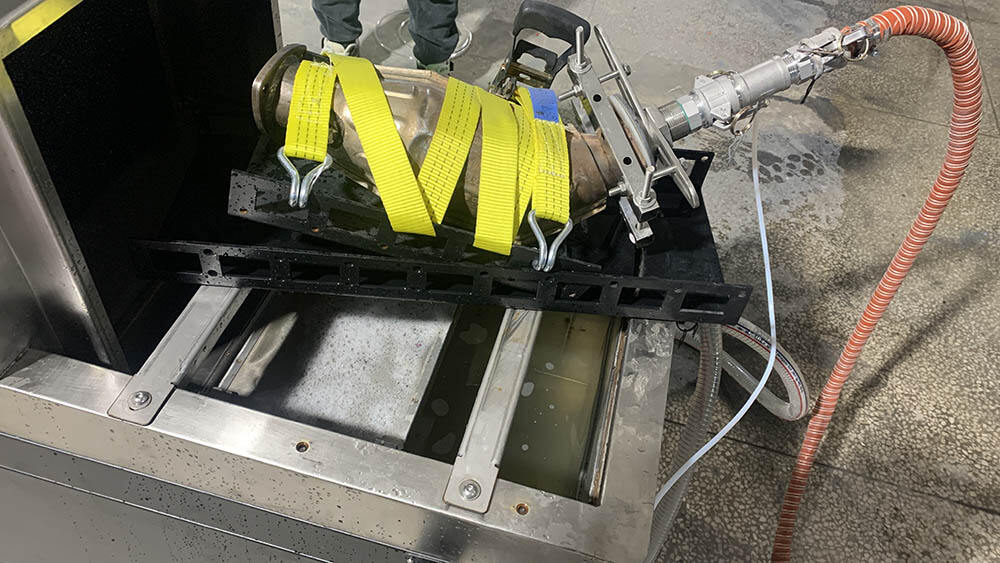

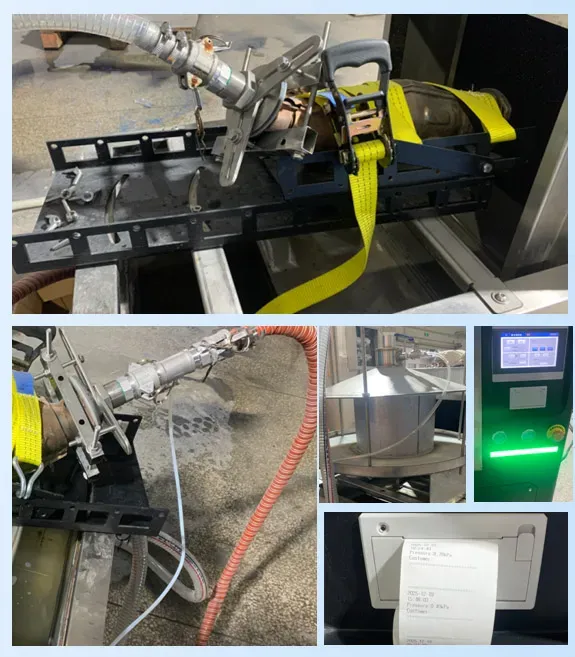

● Connect the SCR or DPF as needed and add clean water to the tank.

● The SCR-specific cleaning agent can be added to the SCR or DPF for immersion or directly to the water tank.

● Power on the equipment; the PLC will begin loading, and the screen will light up.

● If heating the cleaning solution is required, select the "Heat" button.

● If the cleaning carrier's inner cavity is too large, the water level in the tank may become too low during the cleaning process; replenish the water promptly.

● Unless otherwise specified, the equipment will run for the set time and automatically stop cleaning.

● If you need to pause the automatic cleaning process, click the "Pause" button.

● After completion, switch to the drying/testing connection mode and click the drying button to begin drying.

● After drying is complete, click "Test" to print the post-cleaning test data.



Advantages：


1.Equipped with a high-power built-in water pump and air tank,the air-blast mode enables more thorough cleaning of SCR/DPF.
2.Fully automatic control, one click start, automatic stop after cleaning is completed.
3.No need to disassemble SCR for cleaning.
4.PLC intelligent control, large display screen operation is clear at a glance.
5.Equipped with drying detection function.
