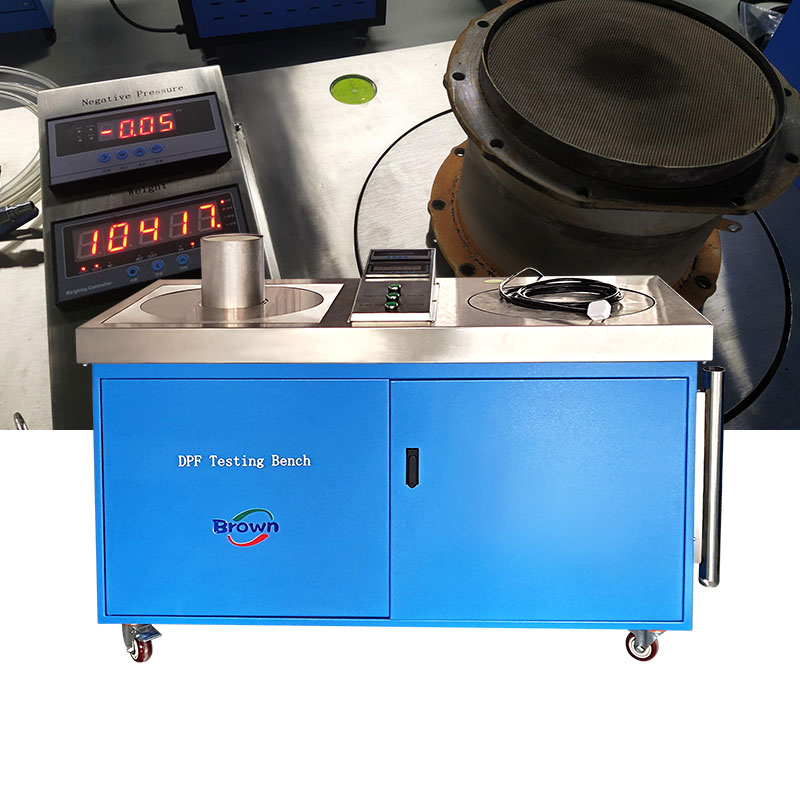

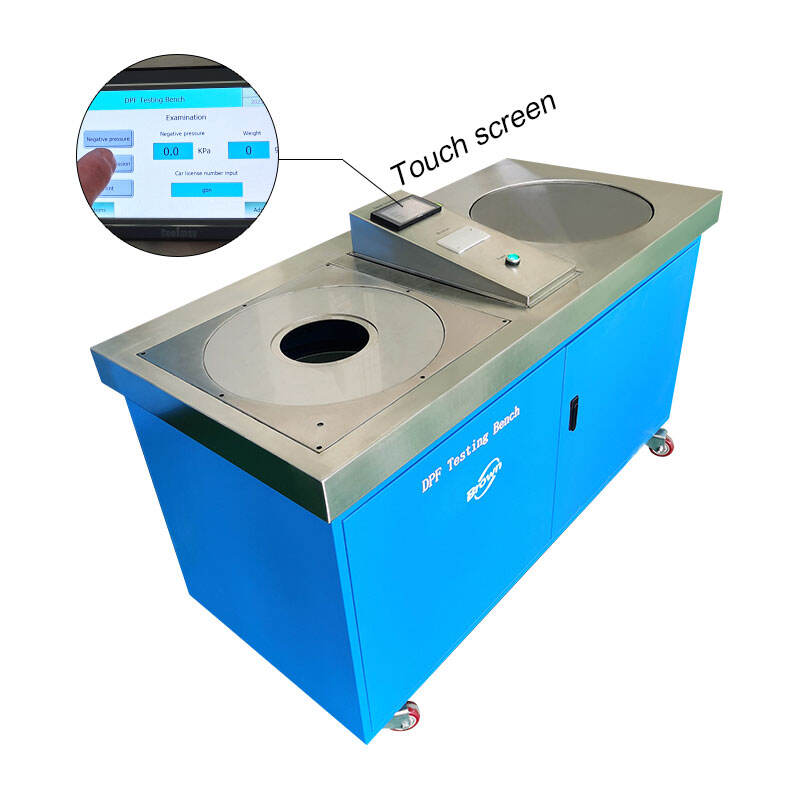

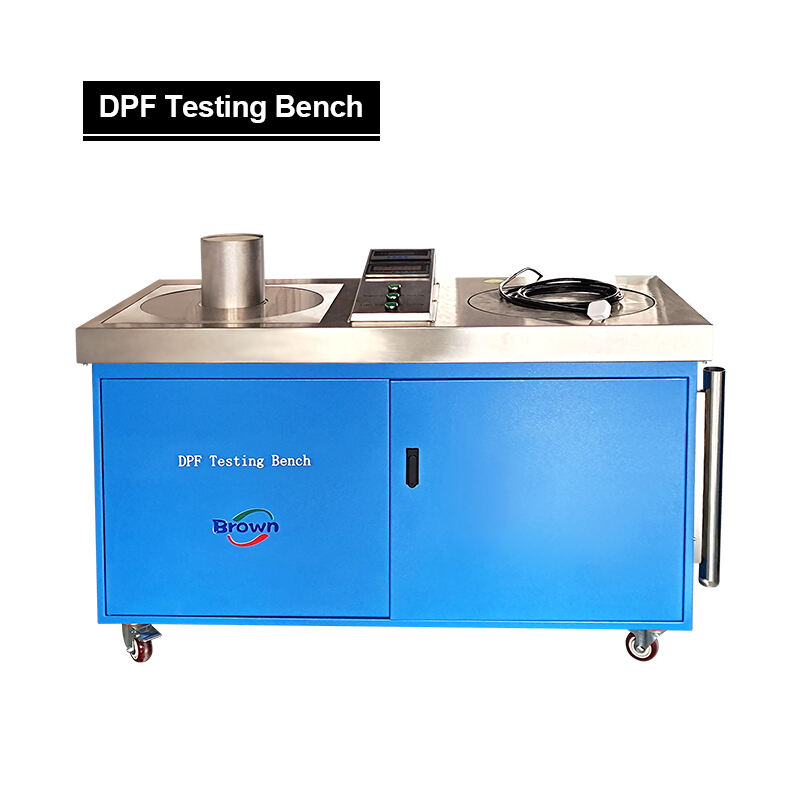

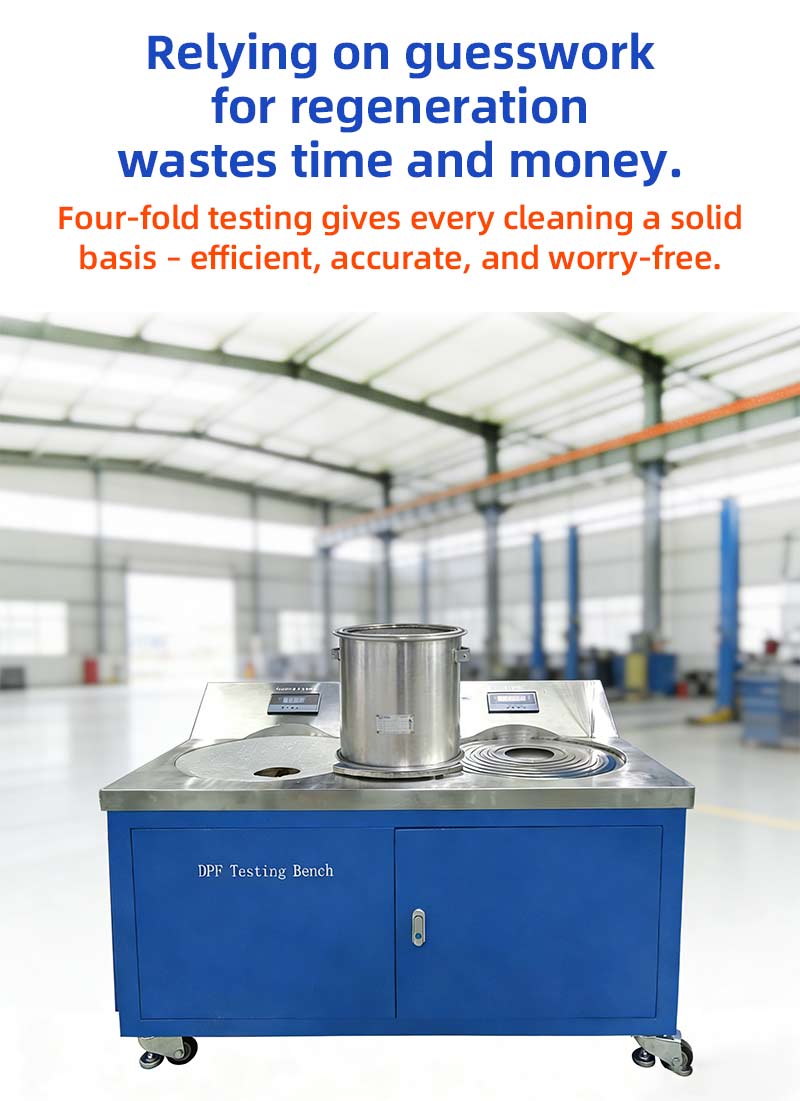

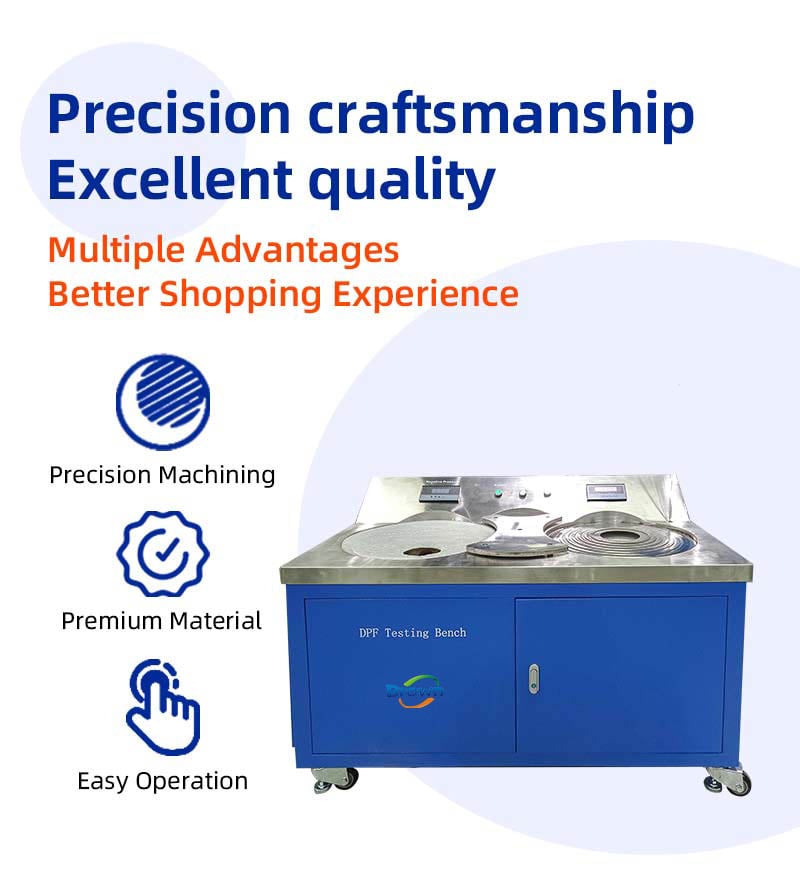

DPF test bench
It’s the best solution for DPF/SCR/DOC cleaning for light, medium and heavy duty trucks, passenger vehicles,also construction equipment.
- Overview
- Recommended Products

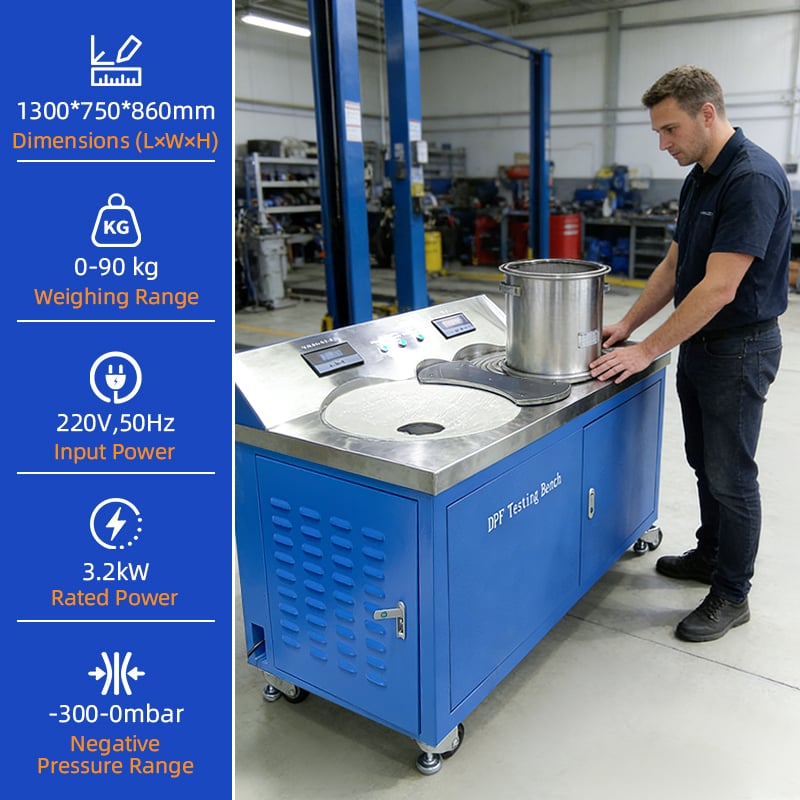

Product parameters
Model Number |
BR-ZDF-MA01 |
Dimensions |
1300*750*860mm |
Net Weight |
150kg |
Input power |
220V |
Rated power |
3.2kW |
Input air pressure |
0.6Mpa |
Material |
304 Stainless steel |

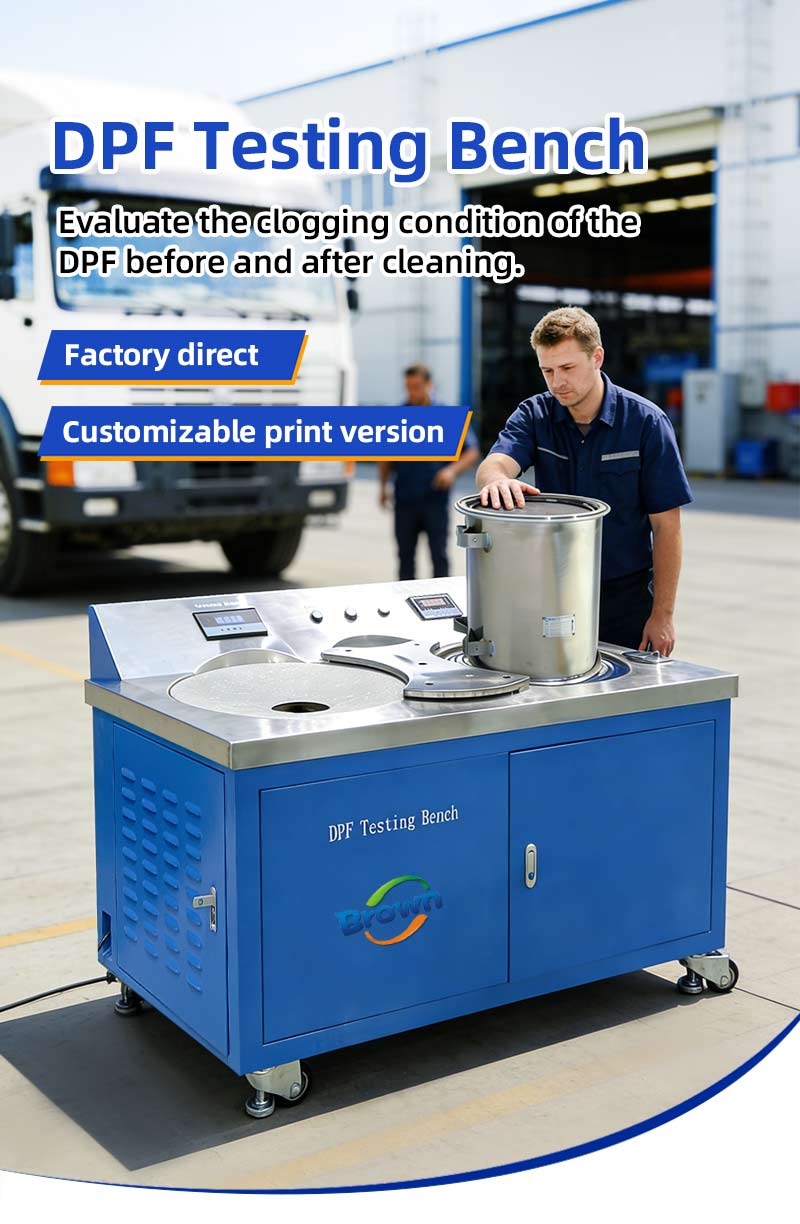

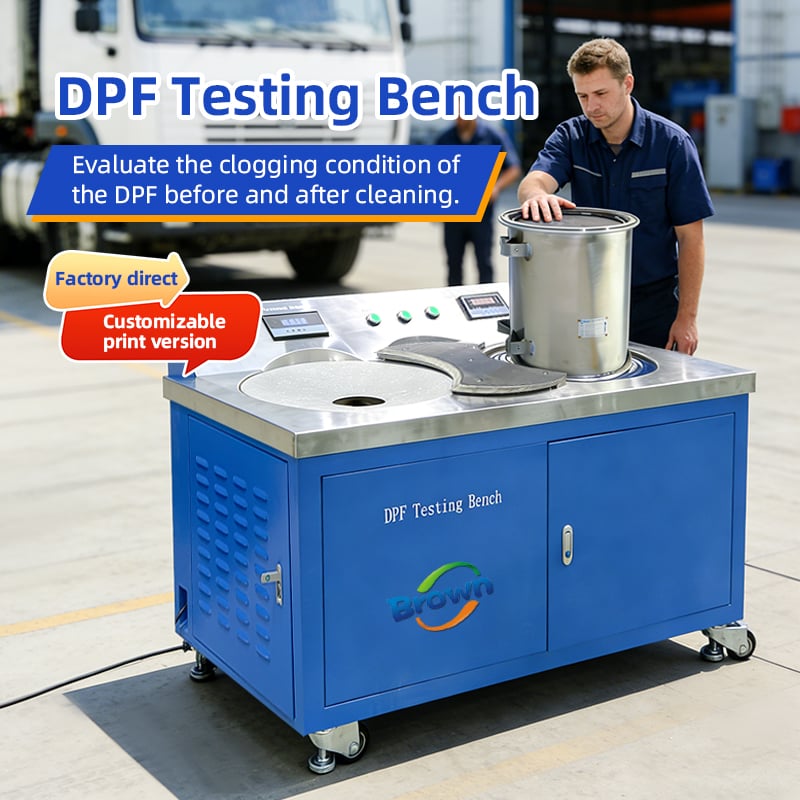

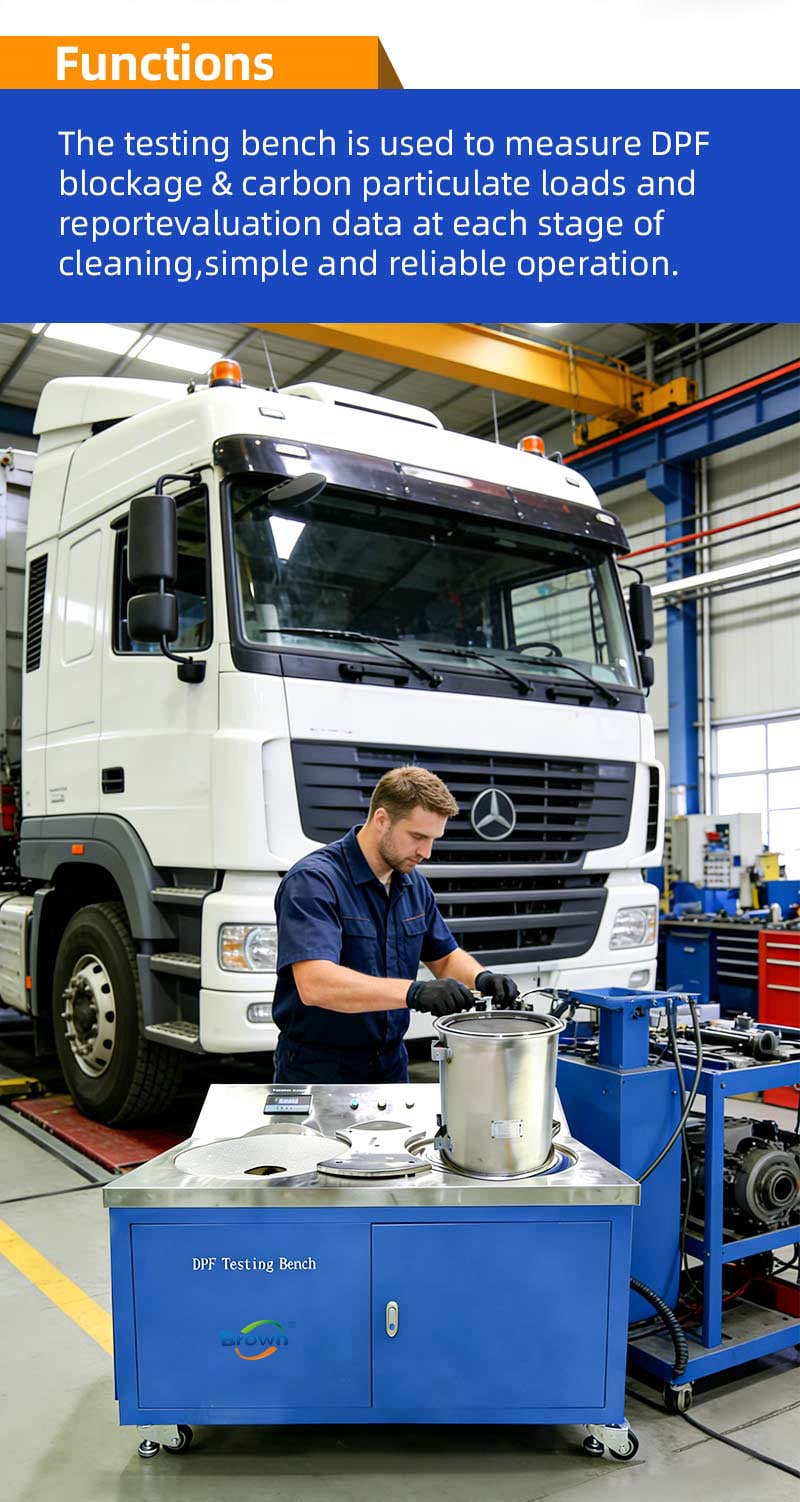

The testing bench is used tomeasure DPF blockage & carbonparticulate loads and reportevaluation data at each stage ofcleaning, simple and reliable operation.

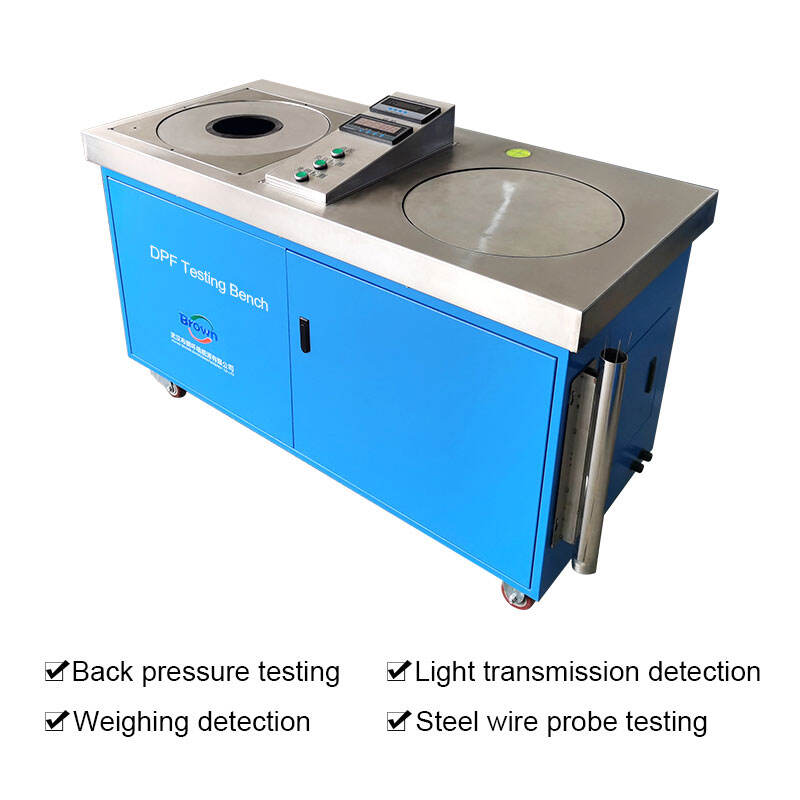

Advantages

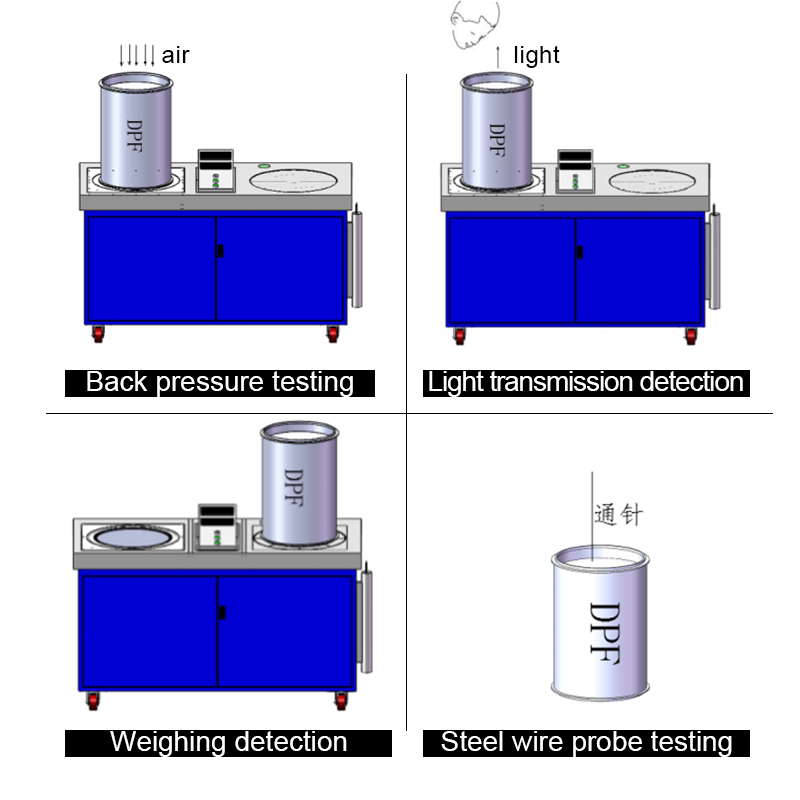

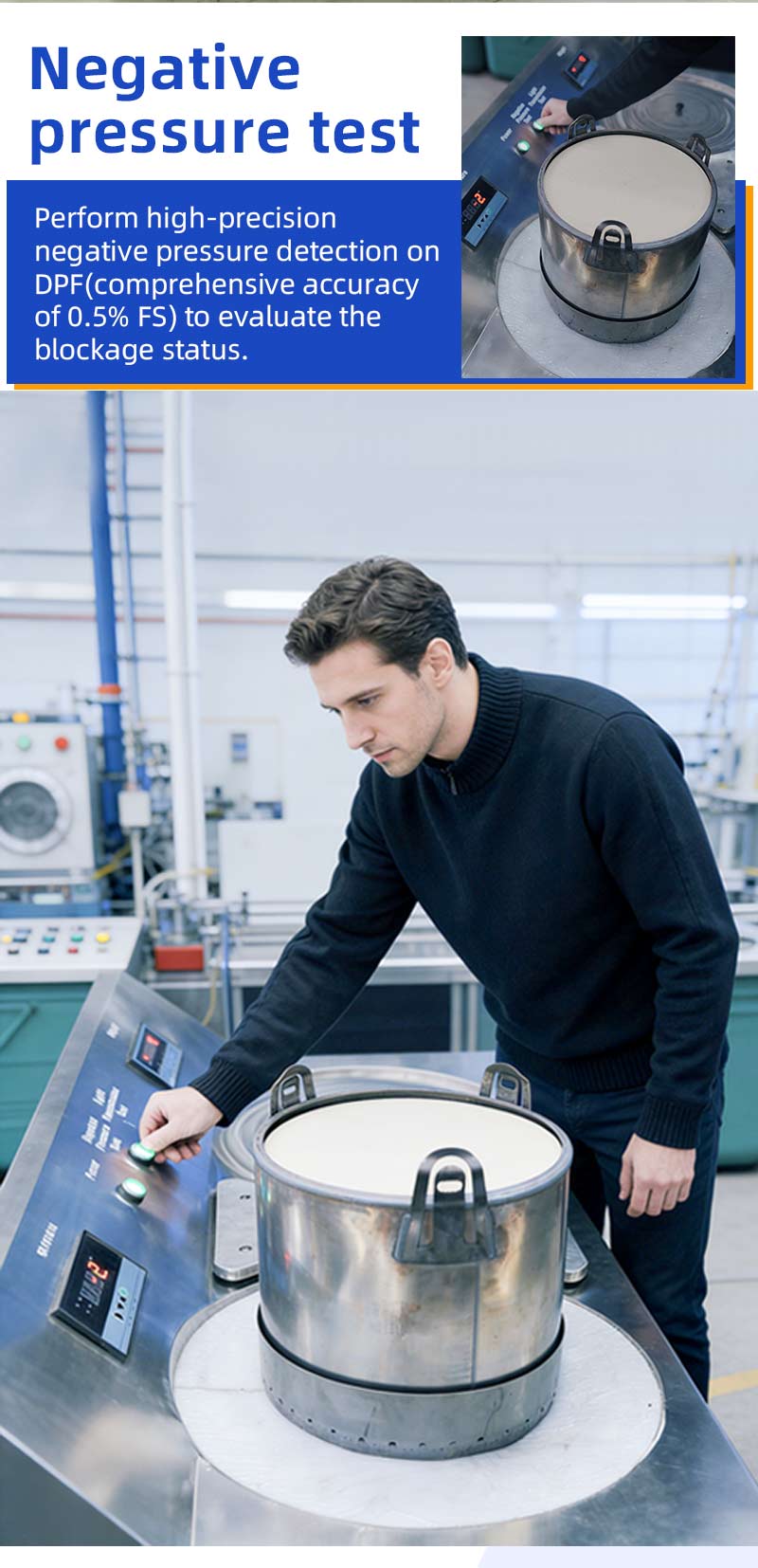

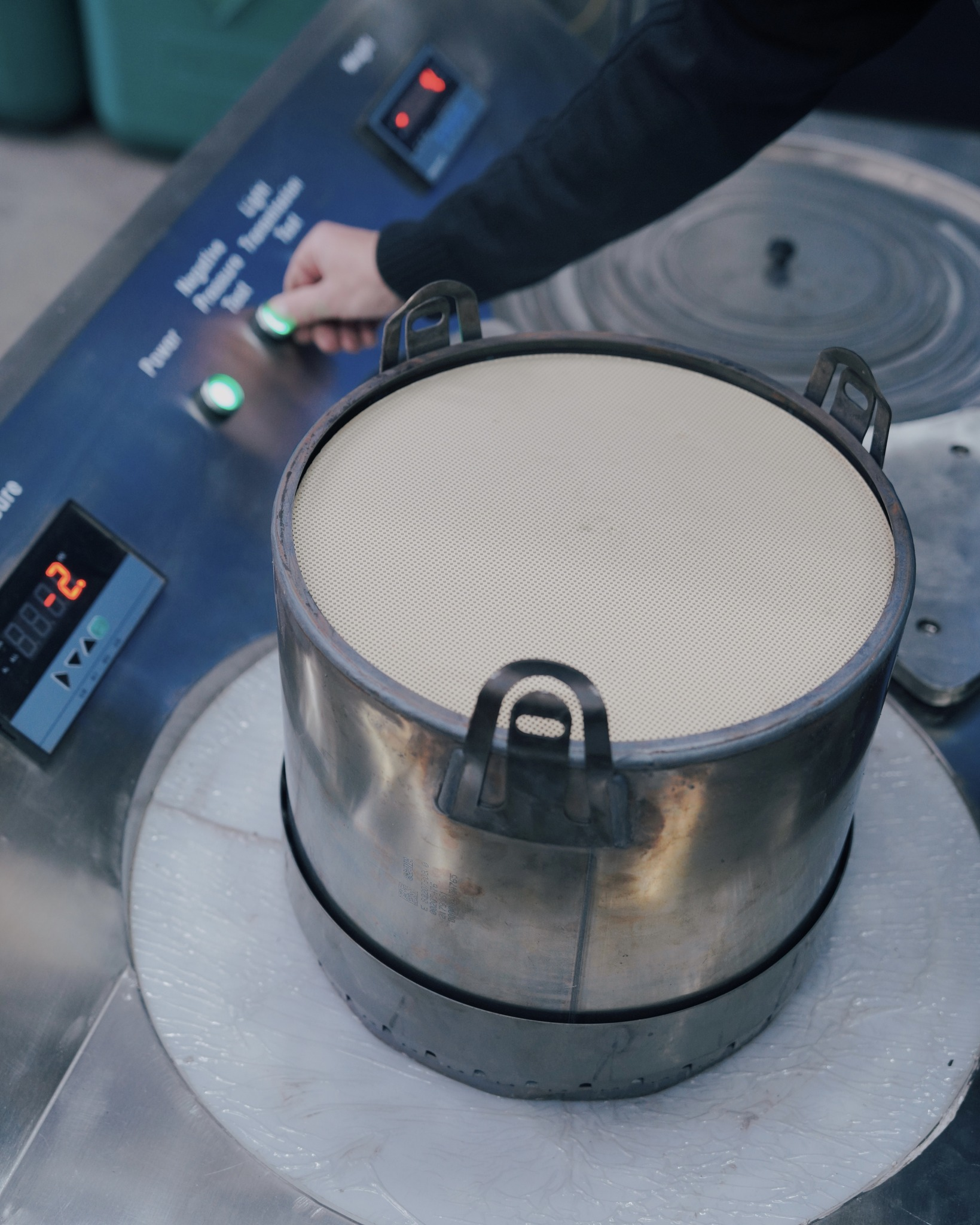

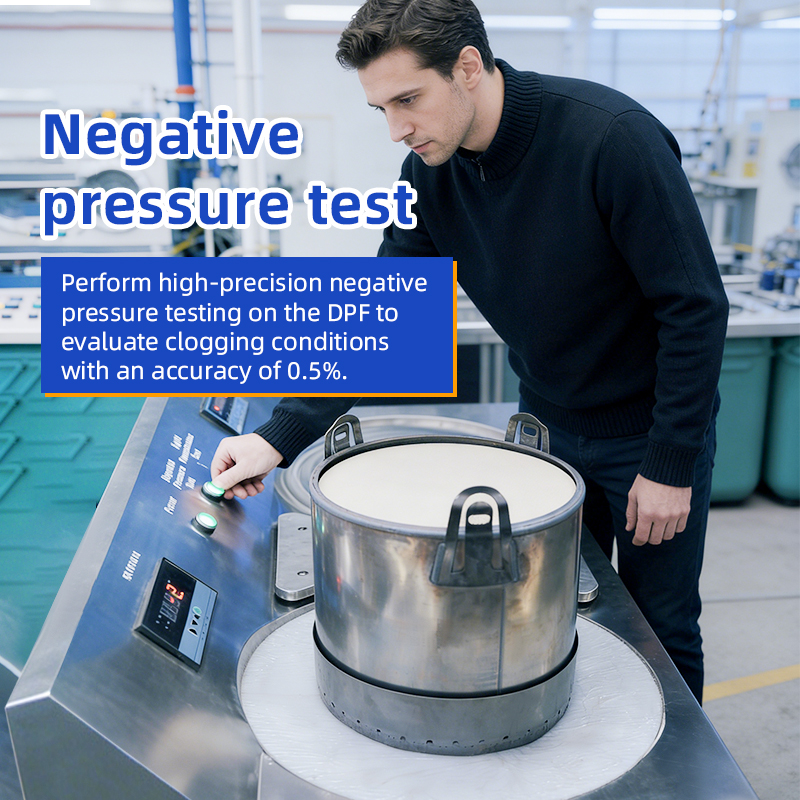

Back pressure testing: Precise back pressure test and blockage evaluation for DPF,accuracy up to 0.5%.

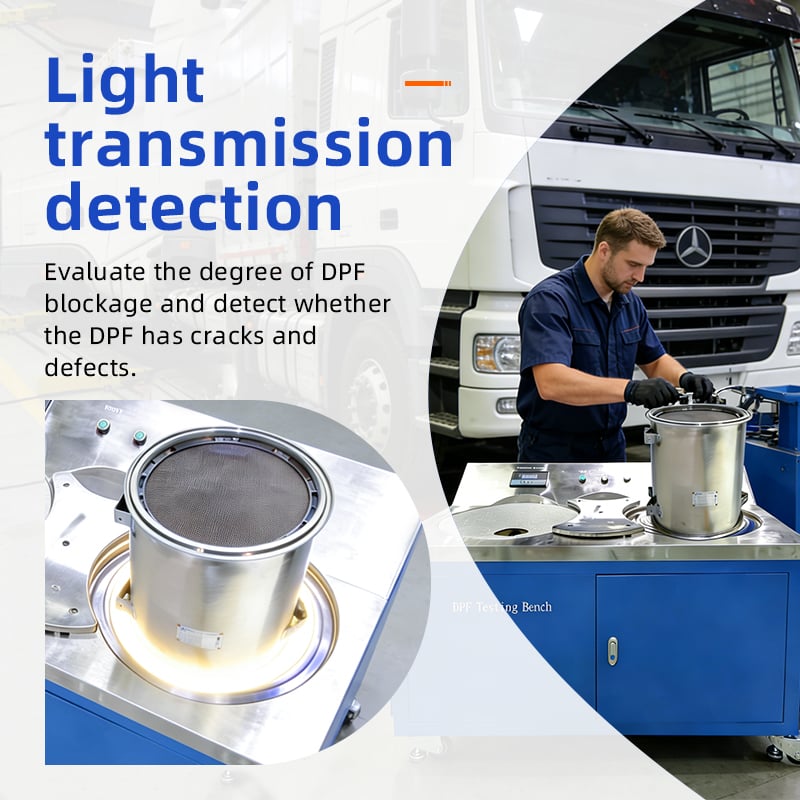

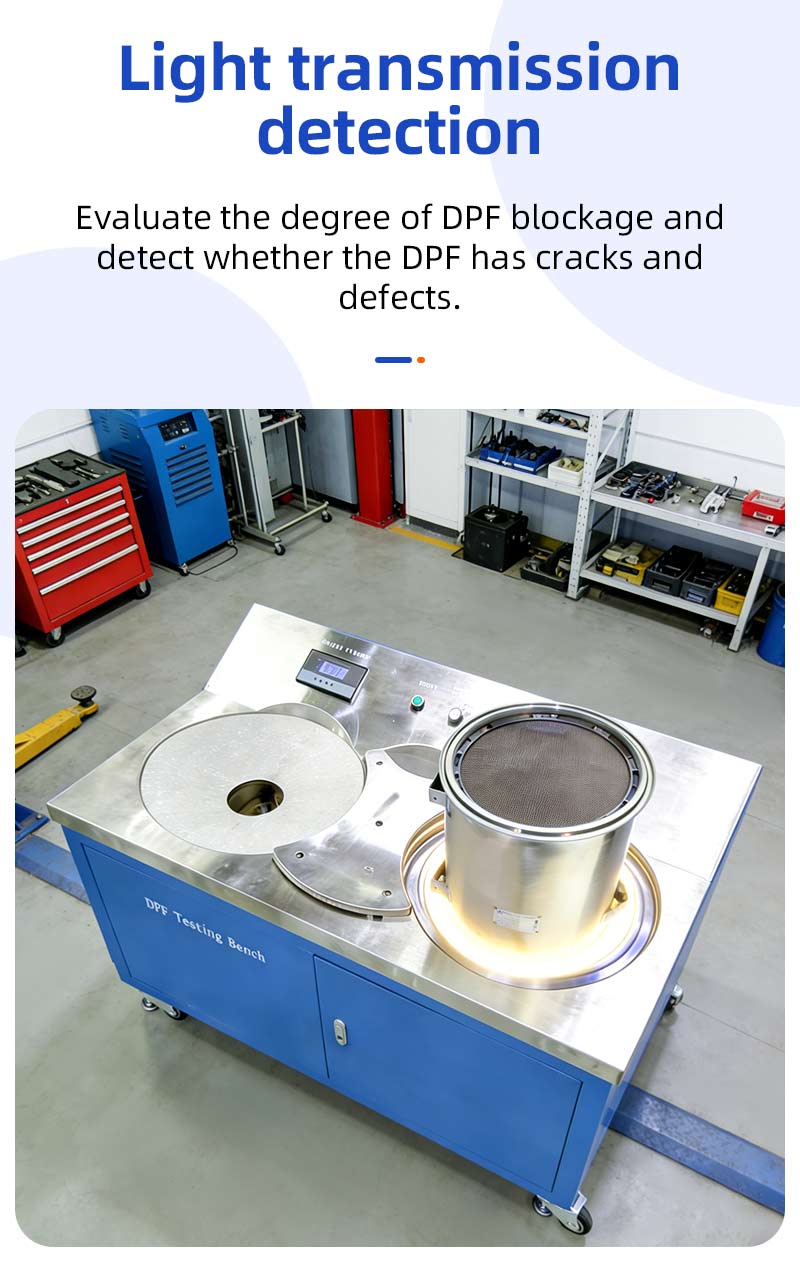

Light transmission detection: Evaluating DPF blockage and detecting whether DPF has cracks and defects.

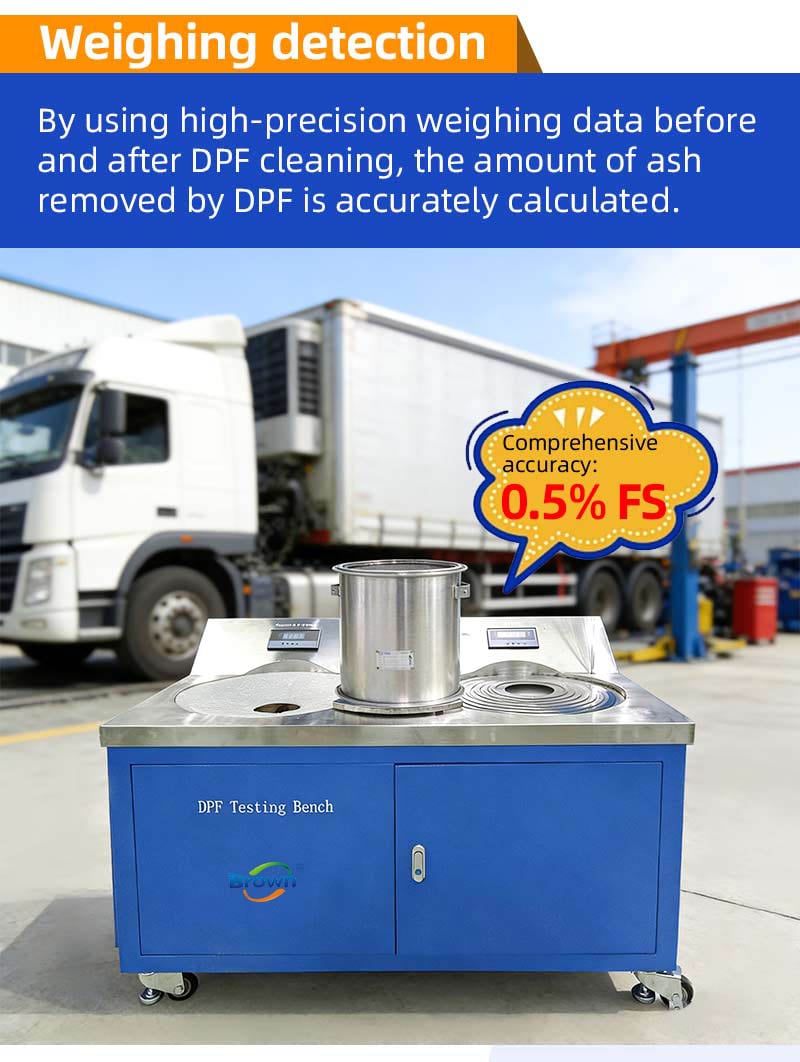

Weighing detection: High precision weighing before and after DPF cleaning to calculate the ash & carbon particulates weight precisely, accuracy up to 0.1g.

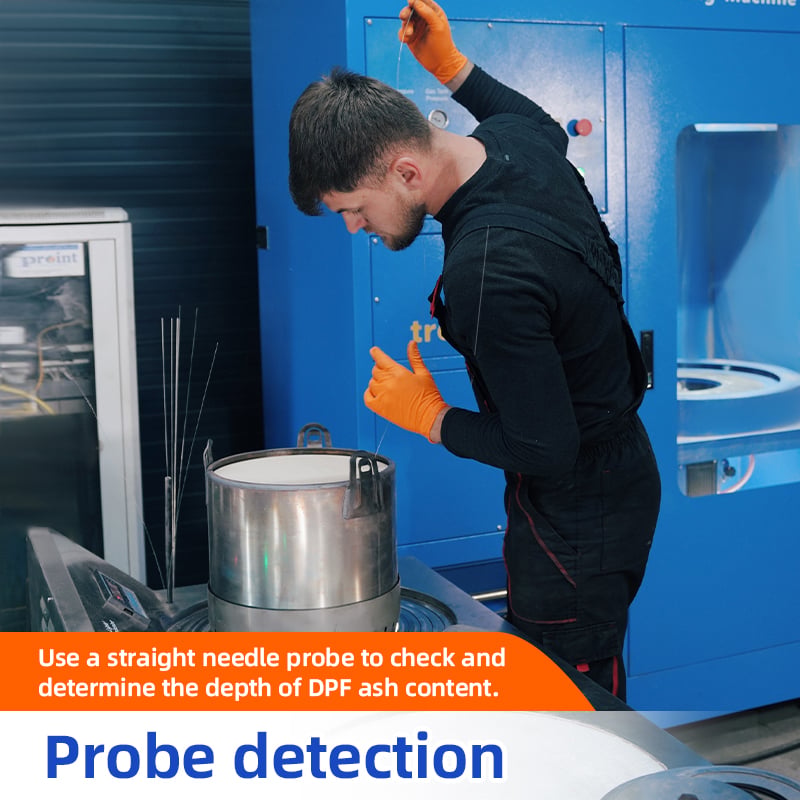

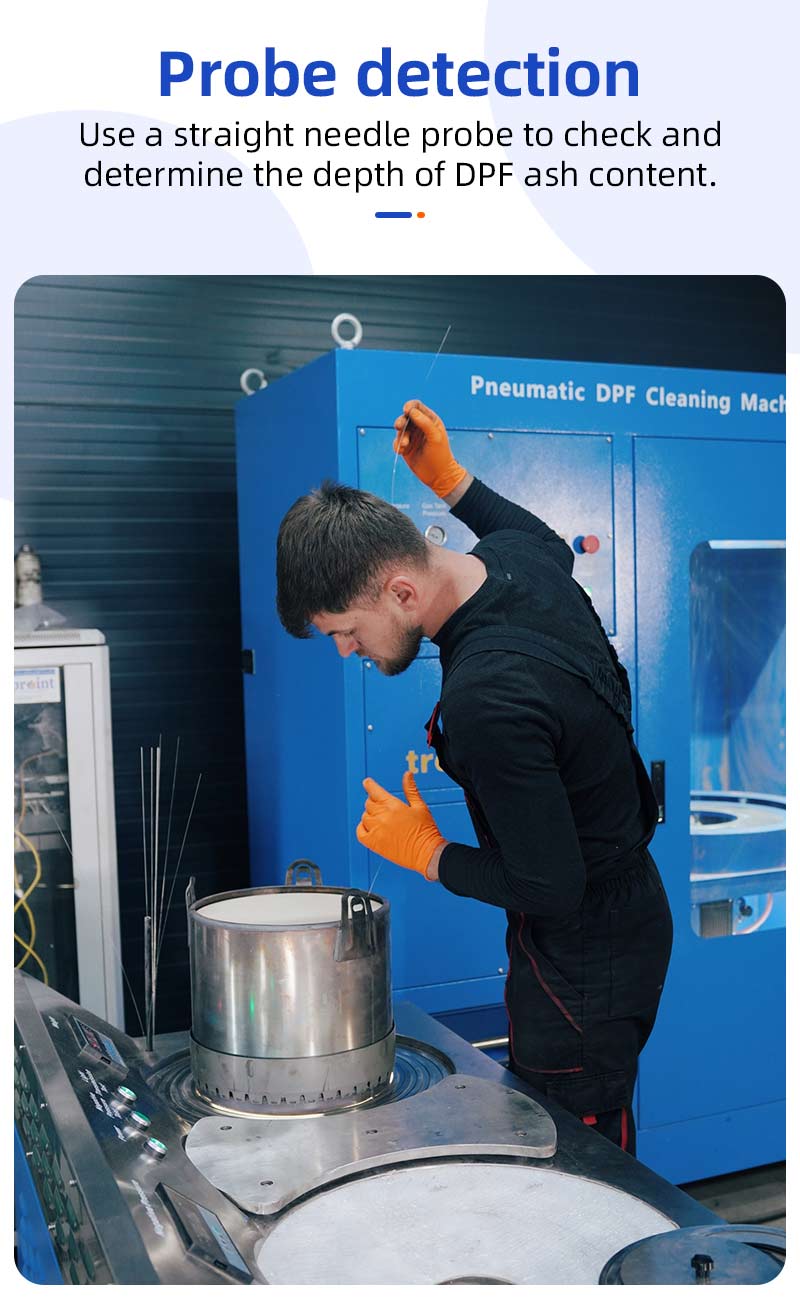

Steel wire probe testing: Check and judge ash depth of DPF by wire probe.
Networked communication: Data sharing with other DPF regeneration machines.
