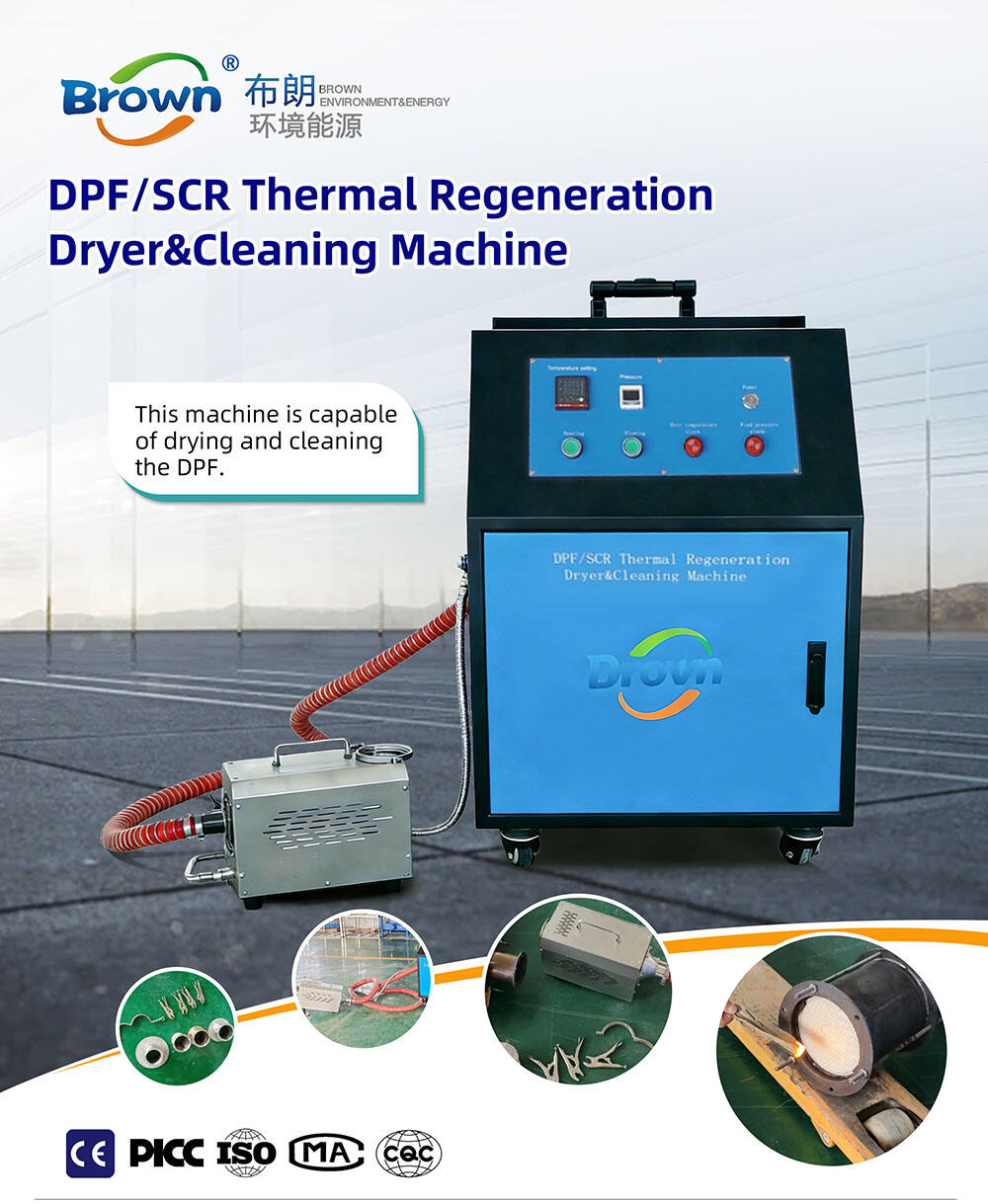

DPF/SCR Thermal Regeneration Dryer&Cleaning Machine

The machine has the functions of drying and cleaning DPF. Connect DOC/SCR/DPF to the equipment heater through fixtures, and introduce high-pressure airflow into the heater through a high-pressure fan. After being heated by the pipeline heater, it enters the post-treatment system. After the high-temperature cleaning is completed, stop heating and continue to start the high-pressure fan to introduce room temperaturehigh-pressure airflow to quickly cool the post-treatment system. After cooling, the regeneration of the post-treatment system is completed.

Overview
Recommended Products

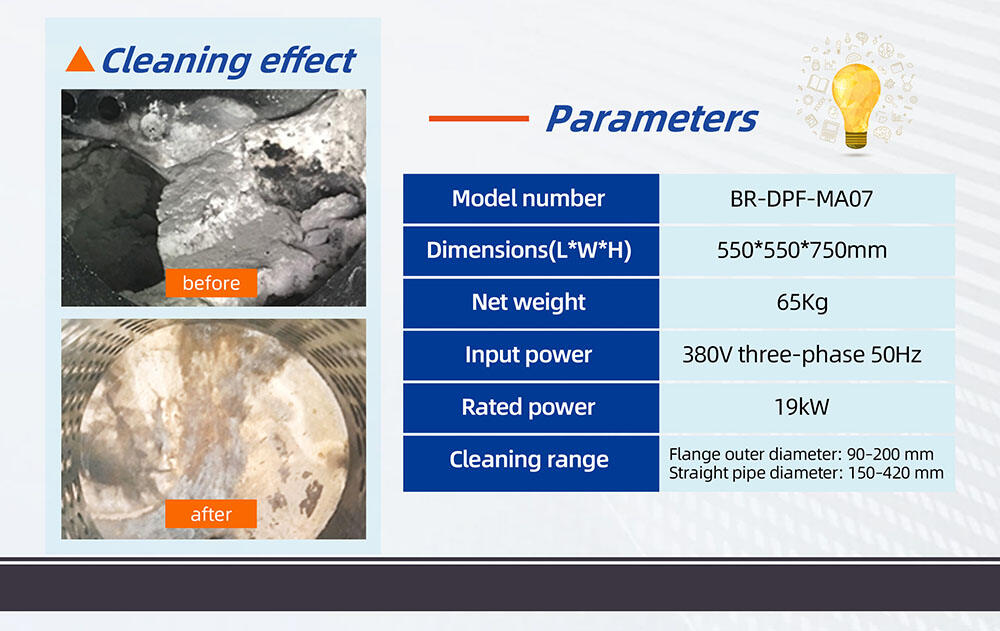

Product Parameters

Product model	BR-DPF-MA07
Voltage	Three phase 380V 50HZ
Dimensions	550 * 550 * 750mm
Power	19kw
Net weight	65kg
Operating temperature	0-700 ℃

The post-treatment no cutting high-temperature regeneration machine is an easy to operate high-temperature non-destructive regeneration equipment, suitable for removing carbon deposits and particulate matter from the post-treatment system of vehicles such as passenger, freight, and heavy-duty trucks in the five countries of China. No cutting achieves true non-destructive treatment of DPF by accurately breaking down carbon deposits from the inside at high temperatures, restoring the DPF system components to a good state and achieving the purpose of regeneration.

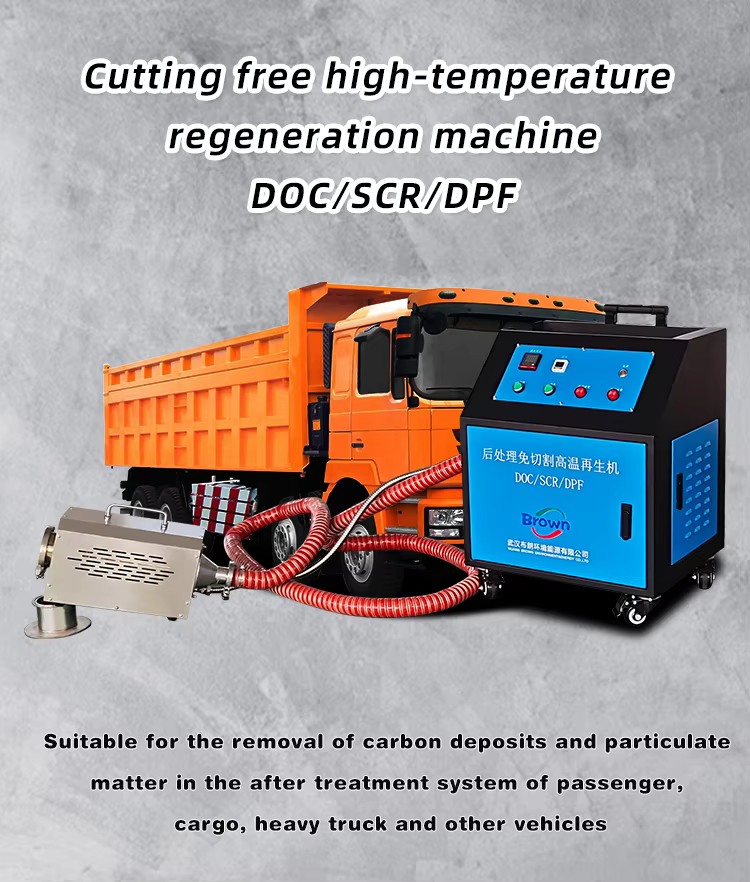

scr thermal regeneration dryercleaning machine-0

Product Features

1.No cutting required：

DOC, DPF, and SCR do not require decomposition to achieve non-destructive high-temperature regeneration, and can be quickly regenerated through specialized fixtures.

2.Non destructive regeneration

During regeneration, heat is directly applied from the core area, without the need to heat through the insulation layer from the outside to the inside. Carbon deposits are dissolved from the inside, truly achieving non-destructive regeneration.

3.energy saving

The heating effect is 50% more energy-efficient than heating tubes, and the thermal energy converter can greatly improve energy utilization efficiency.

4.Easy to use

The device is equipped with telescopic rods and universal casters, which are flexible to move and easy to use. In addition, the thermal energy converter can be placed in the card slot above the device for easy storage after use.

5.Short duration

This device host is equivalent to an engine without torque limitation and can continuously output 0-700 degrees of thermal energy! Heating and cooling only take a few minutes, greatly reducing the total regeneration time.

6.Use safety

The equipment has high temperature alarm and wind pressure alarm functions, which are beneficial for protecting the safety of the machine and operators.

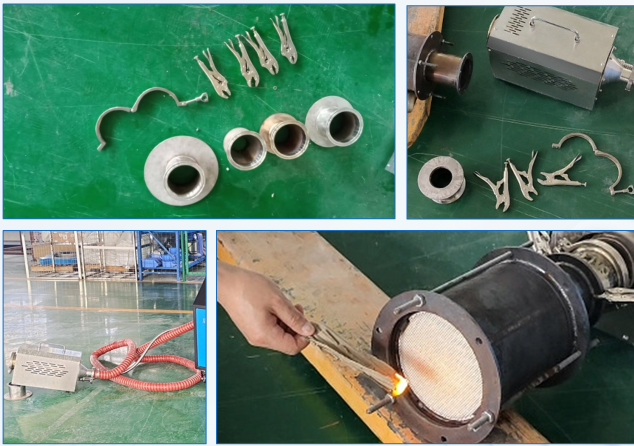

scr thermal regeneration dryercleaning machine-1
